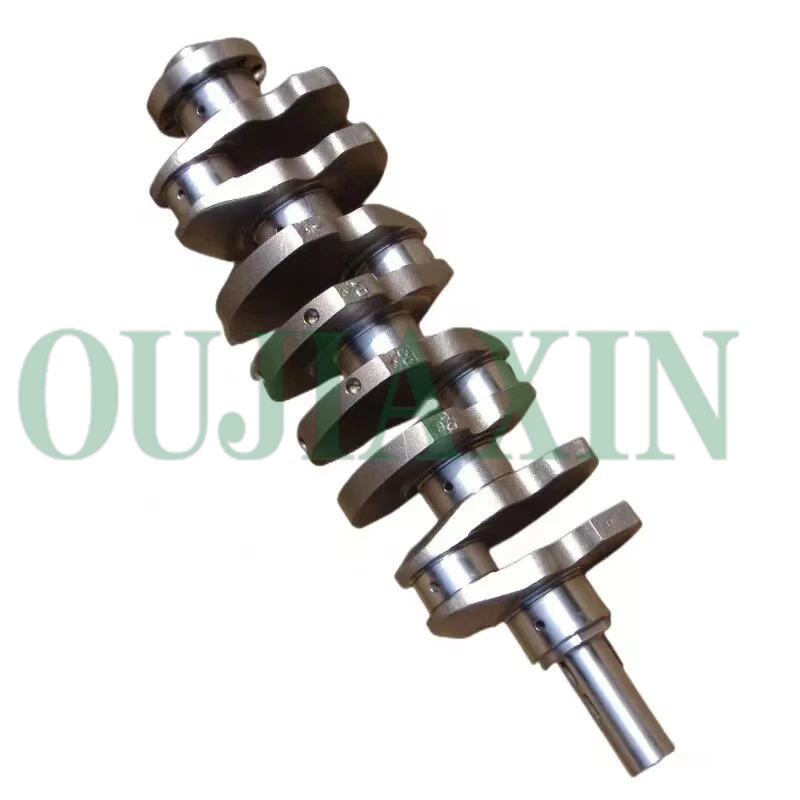

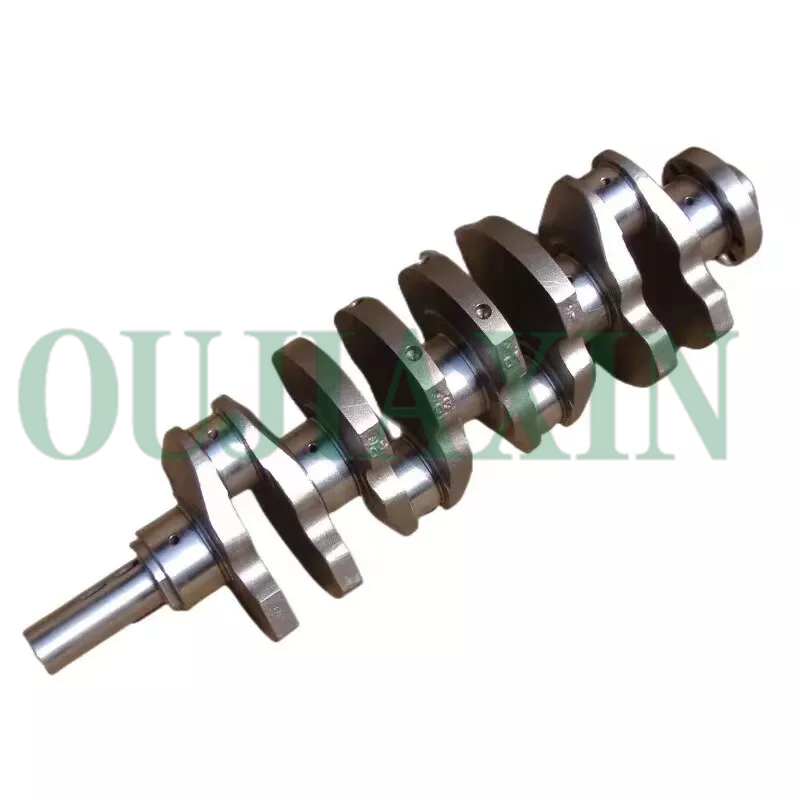

Crankshaft for Toyota 3RZ 3RZ-FE 2.7L engine

The crankshaft of the Toyota 3RZ-FE 2.7L engine features eight counterweights; it has a main journal diameter of 60.00 mm, a connecting rod journal (crankpin) diameter of 53.00 mm, and a piston stroke of 86.00 mm.

Category: Uncategorized Tag: crankshaft

Description

Description

Material: Cast iron (8 counterweights)
Stroke: 86.00 mm (3.39 in)
Main journal diameter: 59.987–60.000 mm
Connecting rod journal diameter: 52.745–53.000 mm
Rear oil seal diameter: 88.00 mm
Thrust clearance: 0.020–0.30 mm (maximum limit)
