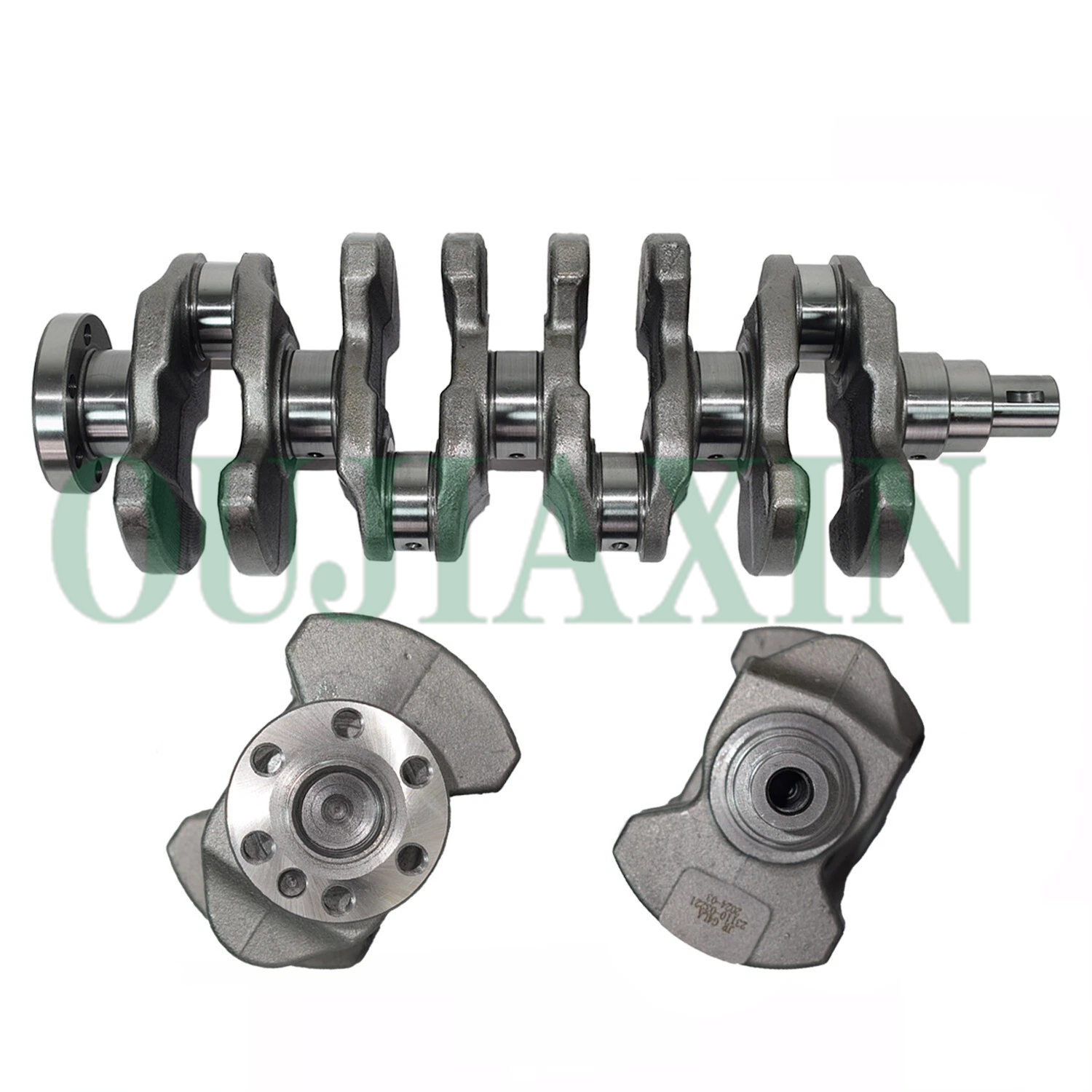

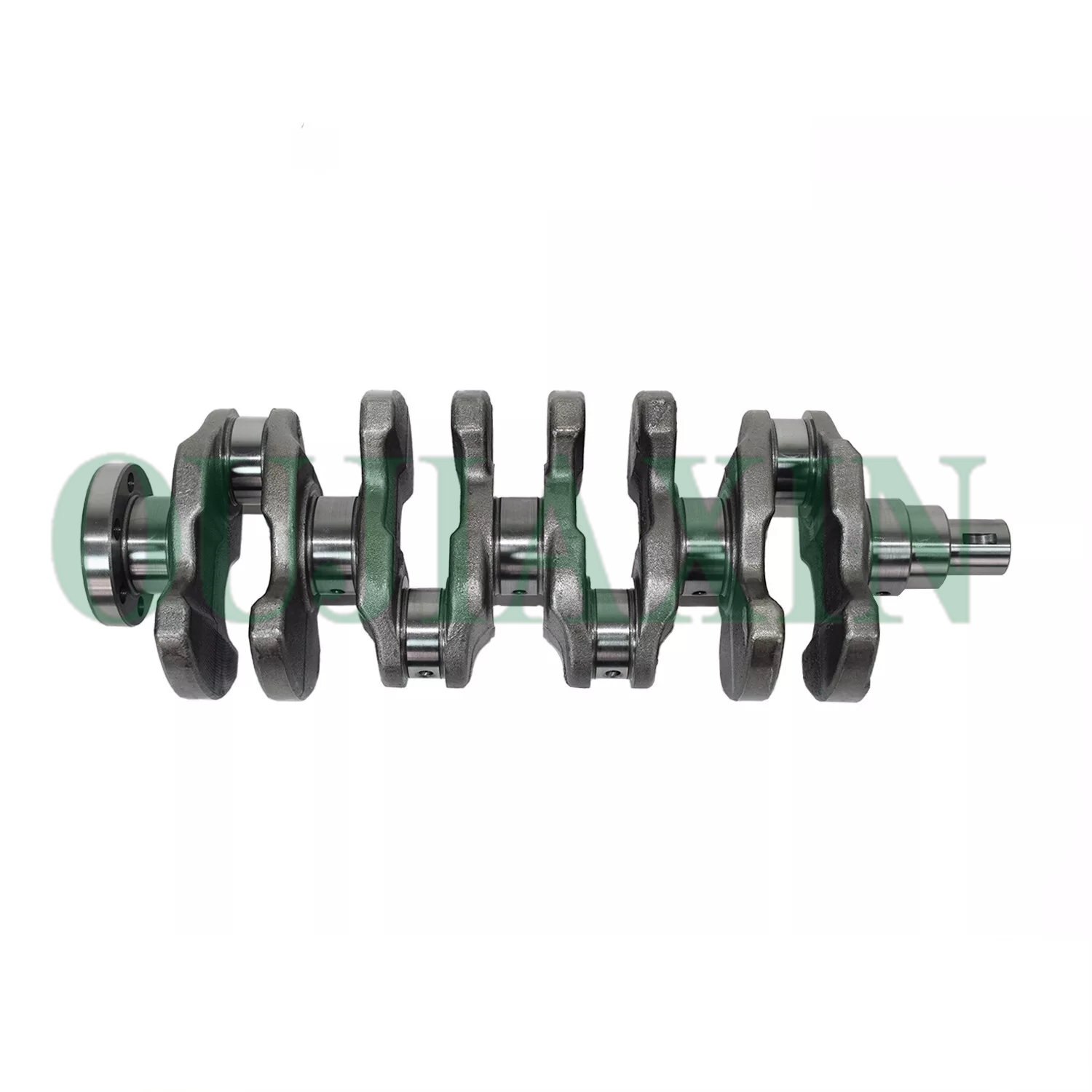

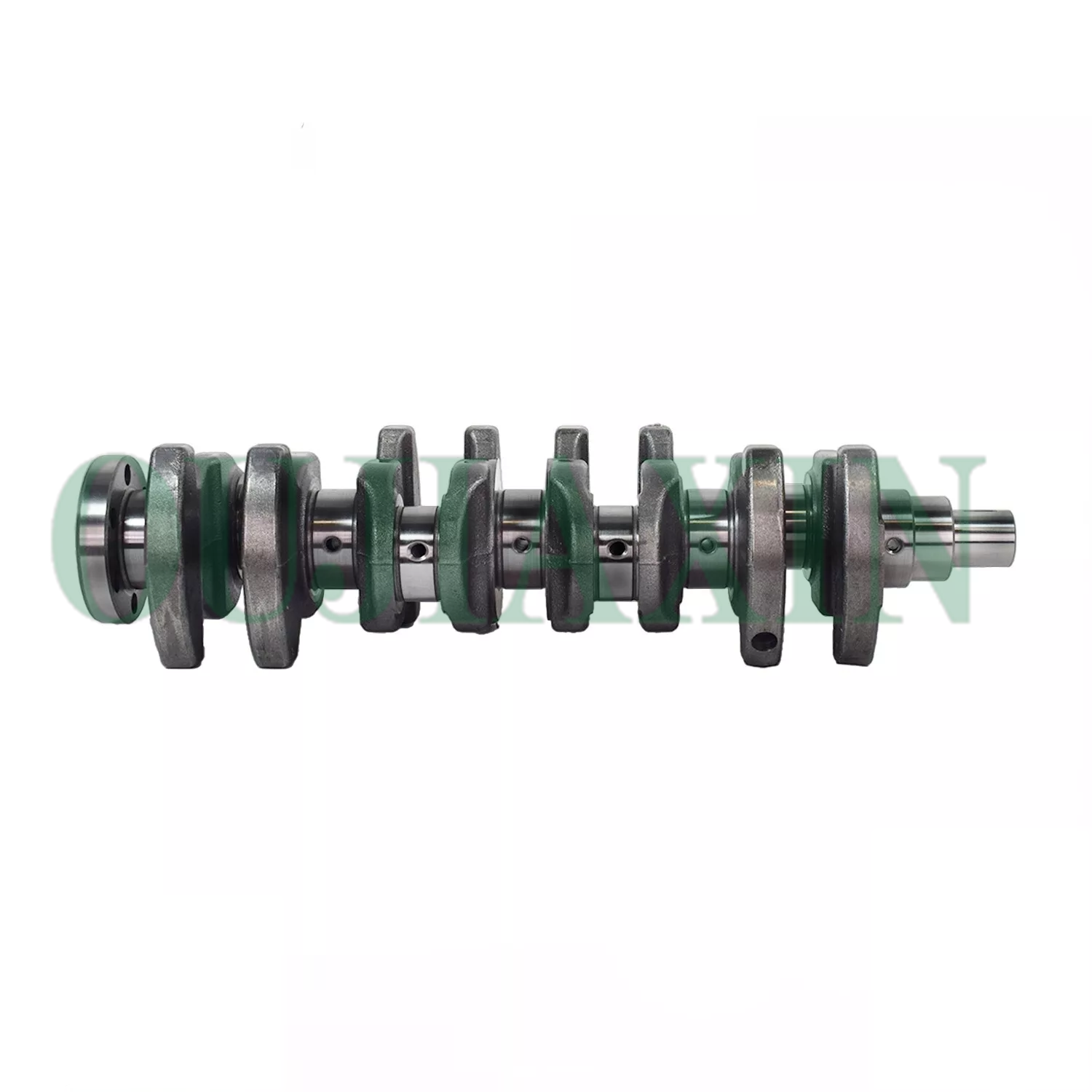

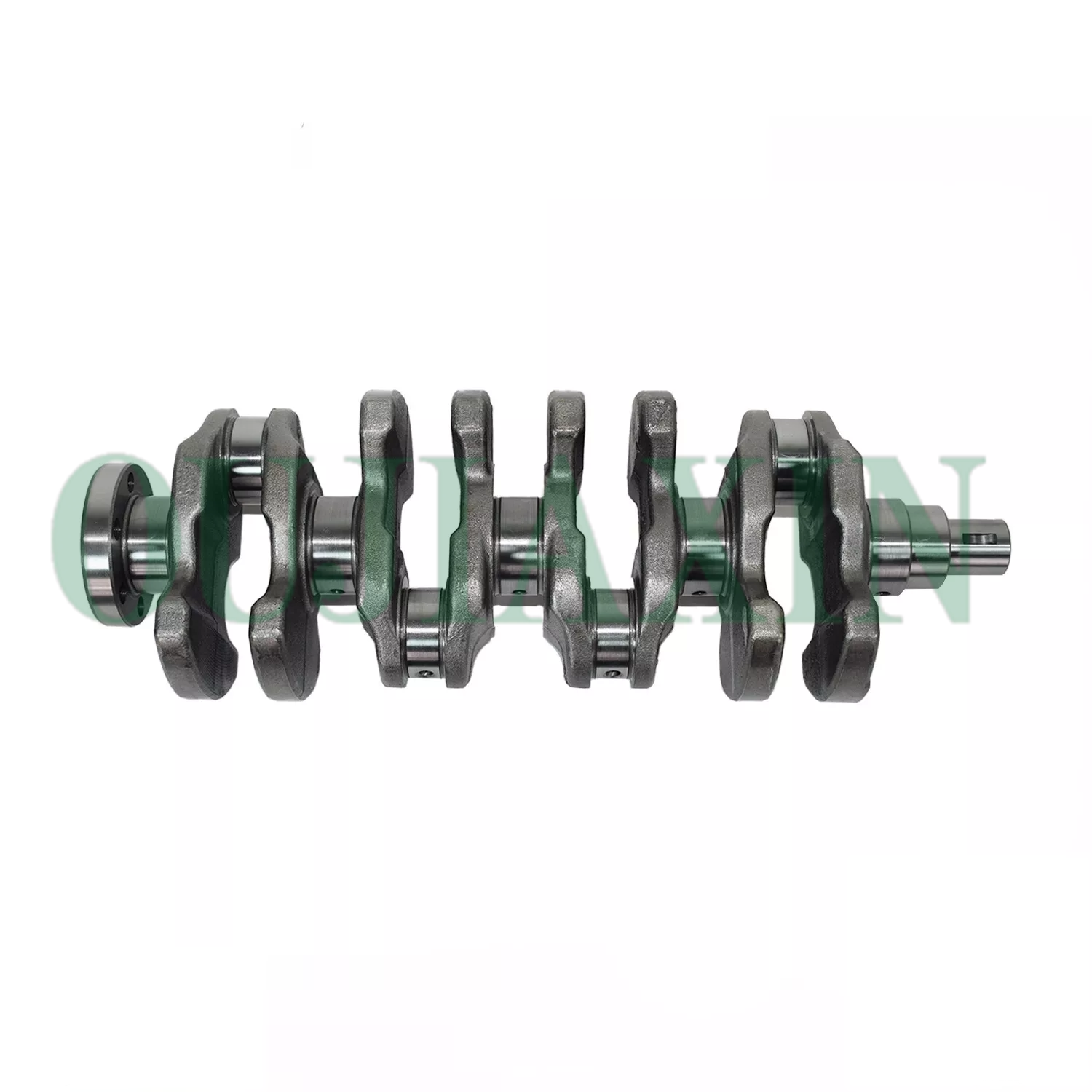

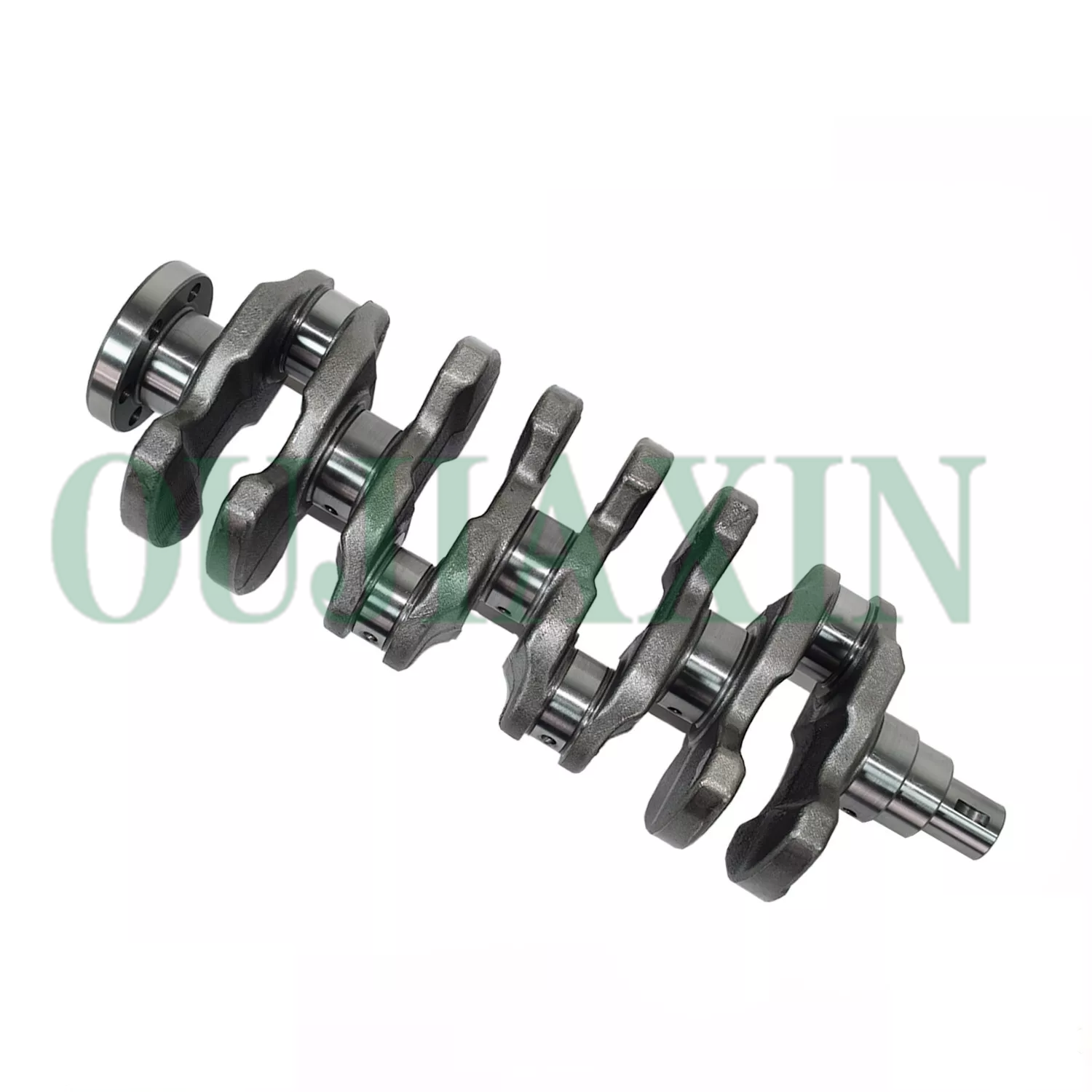

Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
  1. Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
  2. Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
  3. Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
  4. Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
  5. Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)
  6. Crankshaft – Hyundai G4LA (23110-03221 / 23110-03220)

Crankshaft for 2016 Hyundai i20 MK2 1.2 Petrol G4LA 75 – 84HP

The Hyundai G4LA (1.2L Kappa series) crankshaft is a four-cylinder, cast-iron component designed specifically for the Hyundai i10, i20, and Kia Picanto models. Its key technical specifications include a crankshaft stroke of 75.6 mm, a main journal diameter of 43 mm, a connecting rod journal diameter of 39 mm, and a rear oil seal diameter of 72 mm; its OEM part numbers are typically 23110-03220 or 23110-03221.

Category: Tag:

Description

Key Technical Specifications:
Engine Model: 1.25L Kappa Gasoline Engine (14)
Stroke: 75.6 mm
Main Journal Diameter: 43.00 mm
Connecting Rod Journal (Crankpin) Diameter: 39.00 mm (Some aftermarket specifications: 38.95 mm)
Rear Oil Seal Diameter: 72.00 mm
Overall Length: Approx. 397.5 mm – 398 mm
Number of Flywheel Holes: 6
Compatible Part Numbers: 23110-03220, 23110-03221, 23110-03301
