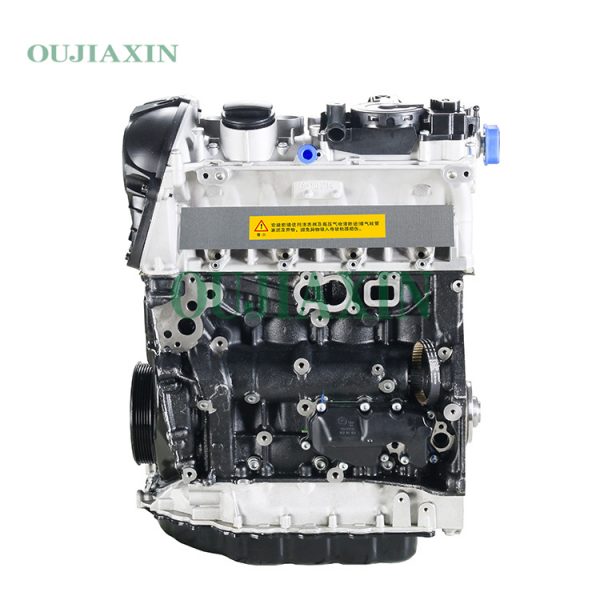

Compatible with 2008–2016 Audi/Volkswagen 1.8L/2.0L EA888 (Gen 3) Engines

The Volkswagen EA888 is a 1.8-liter/2.0-liter turbocharged inline-four engine that has been widely utilized across Volkswagen and Audi vehicle lineups since 2007. This engine series features either a cast-iron or aluminum cylinder block, a Dual Overhead Camshaft (DOHC) valvetrain, and supports either direct injection or dual-injection technology. Renowned for its exceptional reliability and immense potential for modification, the EA888 delivers power outputs ranging from 150 to over 300 horsepower; in its later third and fourth-generation iterations, the engine further incorporates a chain-driven camshaft and an integrated exhaust manifold design.

Category: Tag:

Description

Key Technical Specifications (Overview)
Engine Type: Turbocharged Inline-4 (TSI/TFSI)
Displacement: 1.8 liters or 2.0 liters
Block Material: Cast iron (Generations 1–3); Aluminum alloy optional in later versions
Valve Train: Chain-driven Dual Overhead Camshafts (DOHC), 4 valves per cylinder
Bore x Stroke: 82.5 mm x 92.8 mm (2.0-liter version)
Injection System: Direct Injection (Generations 1–2); Dual Injection (Direct Injection + Port Injection) (Generation 3 and later)
Compression Ratio: Typically 9.6:1
