4Set Engine Connecting Rod for 2014-2021 Hyundai Kia 1.6L Turbo 23510-2B700 (For: Hyundai)

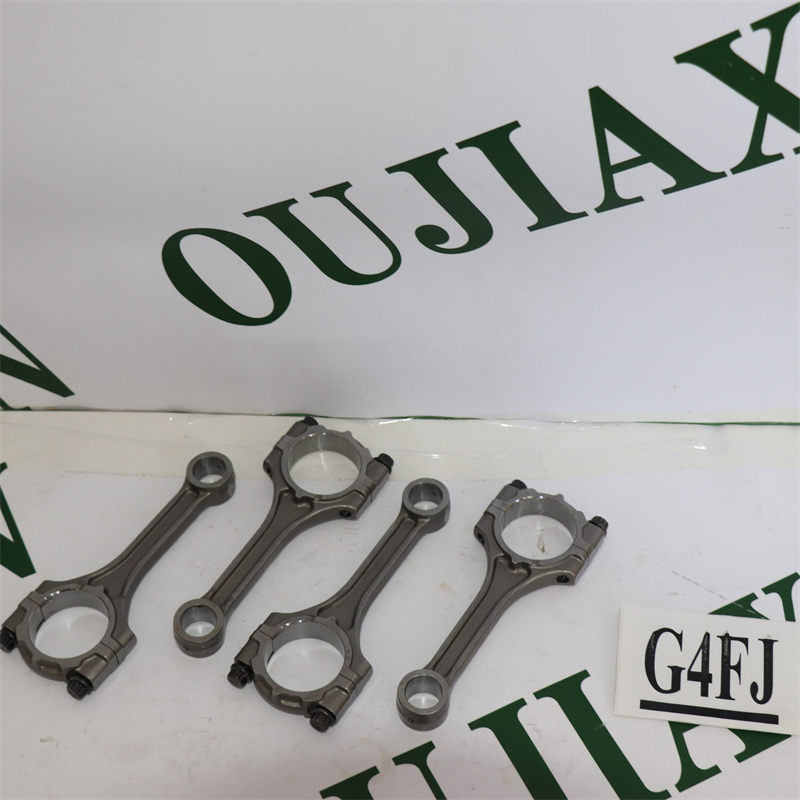

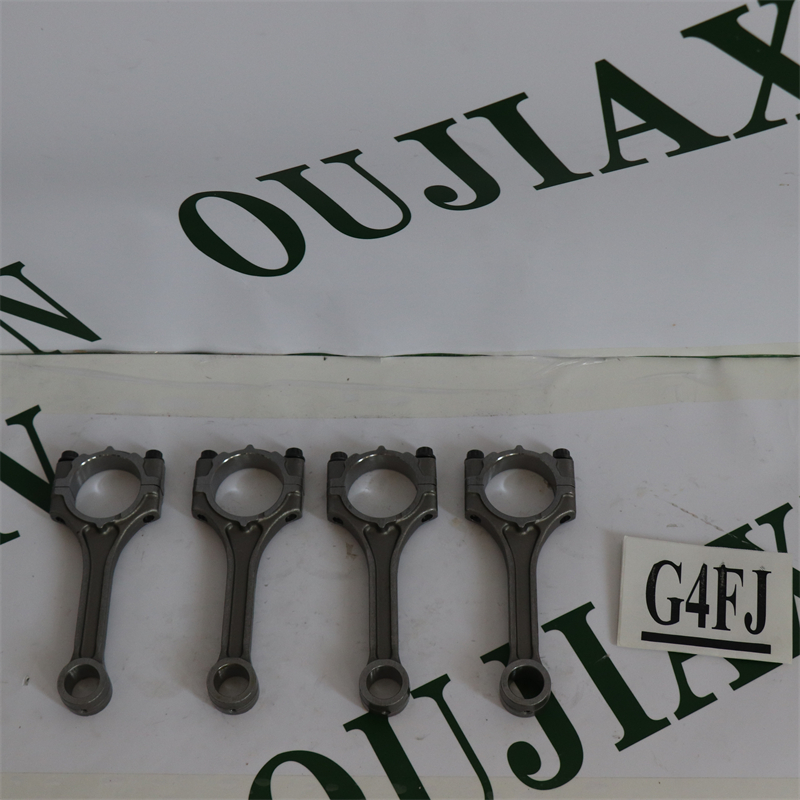

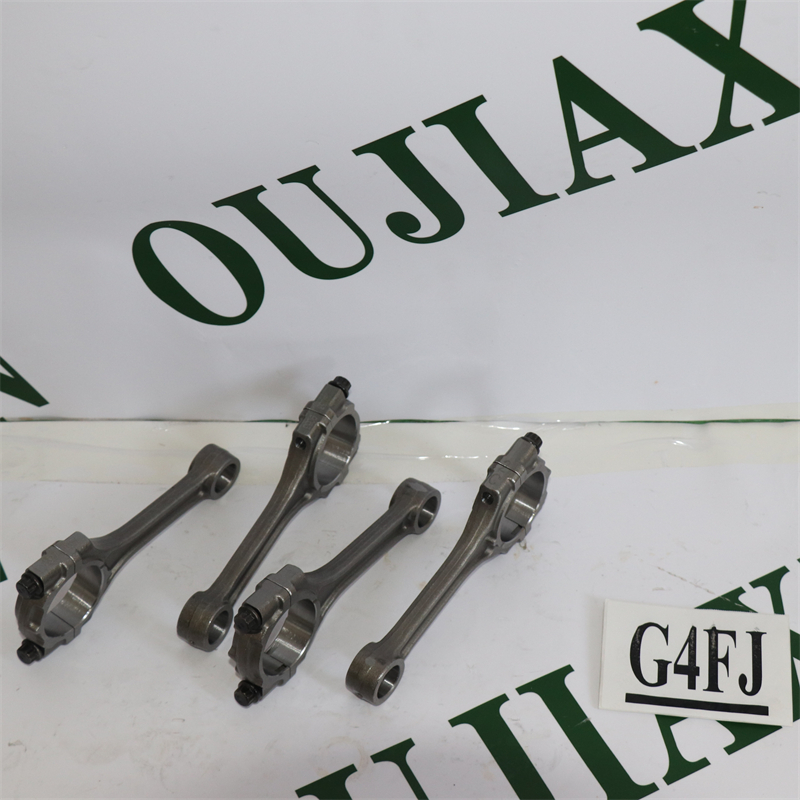

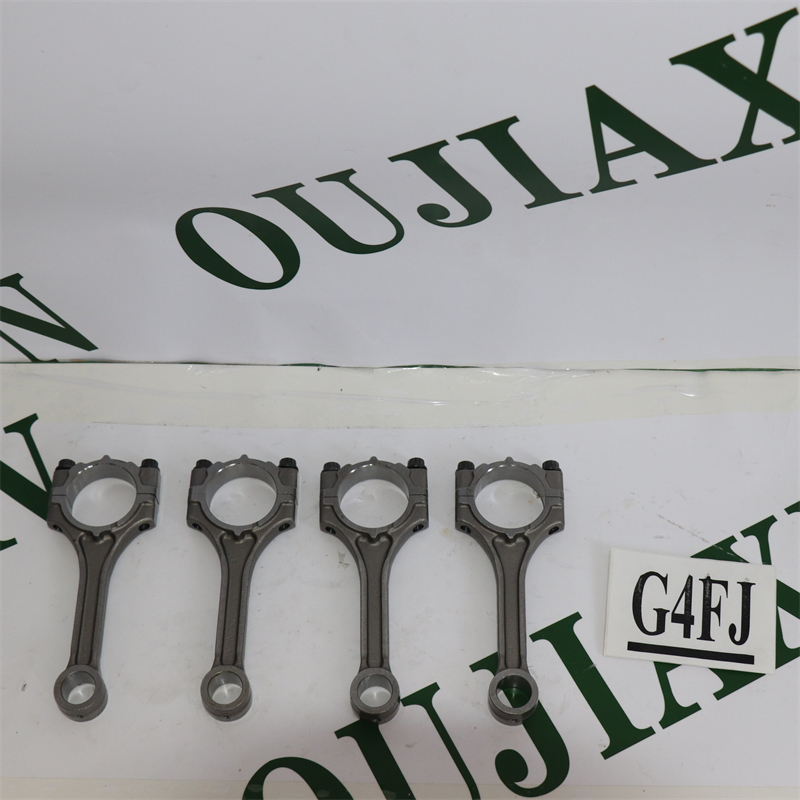

The Hyundai G4FJ connecting rod (Part Number 23510-2B700) is a steel component specifically designed for the 1.6L Gamma GDI turbocharged engine. It features a center-to-center distance of 130.70 mm, a small-end diameter of 20.00 mm, and a big-end bore diameter of 45.00 mm. This connecting rod is compatible with various Hyundai and Kia models produced between 2013 and 2021, including the Veloster Turbo and Tucson.
Description
Key Specifications and Dimensions
Part Number: 23510-2B700 (or 235102B700)
Engine Model: 1.6L G4FJ Turbocharged
Material: High-Strength Steel
Length (Center-to-Center): 130.70 mm
Small End Diameter (Piston Pin Bore): 20.00 mm
Big End Diameter (Bearing Bore): 45.00 mm
Beam/Bore Spacing: 98.20 mm
Width: 19.00 mm
Vehicle Compatibility
This connecting rod is designed as a direct replacement for various 1.6L turbocharged models from Hyundai and Kia:
Hyundai: Veloster (2013–2021), Sonata (2015–2020), Tucson (2016–2018), Elantra/Elantra GT (2017–2020), Kona (2018–2020).
Kia: Forte/Forte5/Koup (2014–2021), Optima (2016–2019), Soul (2017–2021).
