4set 2KD 2KD-FTV Piston with ring For toyota Presen Hilux Hiace FJ Cruise engine

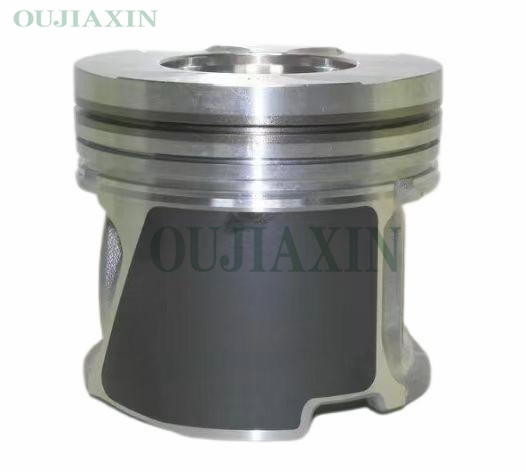

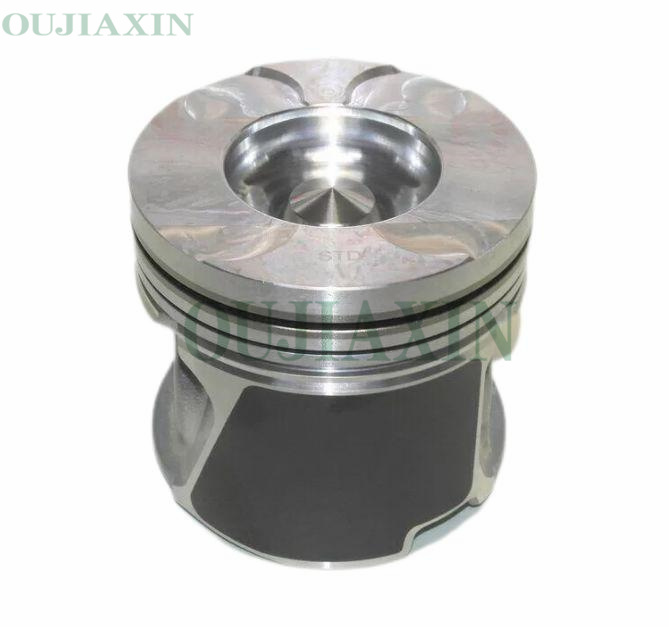

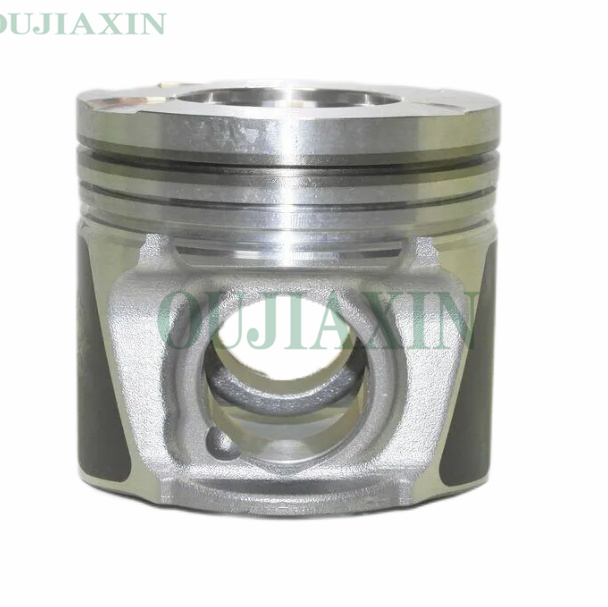

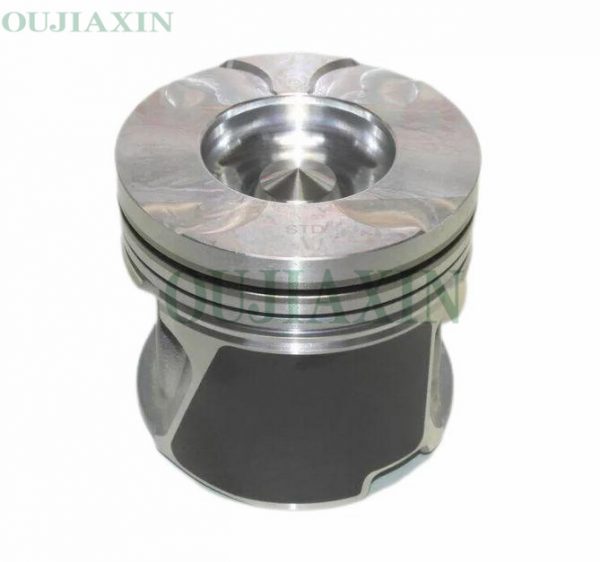

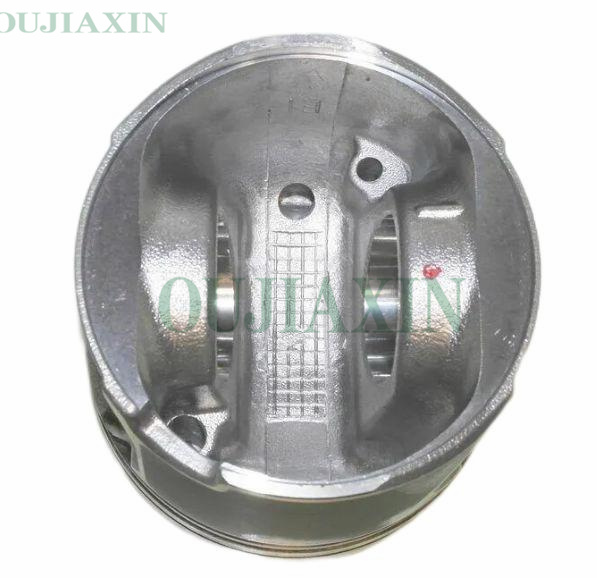

The Toyota 2KD-FTV piston assembly is specifically designed for the 2.5L common rail diesel engine and is constructed from forged aluminum. It features a bore diameter of 92 mm and a piston pin diameter of 22 mm, and is equipped with a nickel-alloy heat-resistant cast iron (Ni-resist) piston ring carrier to ensure exceptional durability. Furthermore, the piston’s interior integrates a combustion chamber and an oil cooling channel, with a compression ratio of approximately 18.0:1.

Category: Tag:

Description

Piston Assembly Key Specifications:
Engine Model: 2.5L Inline 4-Cylinder Diesel Engine (2KD-FTV)
Piston Material: ZL109 Aluminum Alloy, featuring a heat-resistant cast iron (Ni-resist) insert ring
Standard Bore Diameter: 92 mm
Piston Pin (Small End Pin) Diameter: 22 mm
Compression Ratio: Approx. 18.0:1
Features: Incorporates an oil cooling channel, a resin coating on the piston skirt, and a PVD coating on the top compression ring (depending on the specific model)

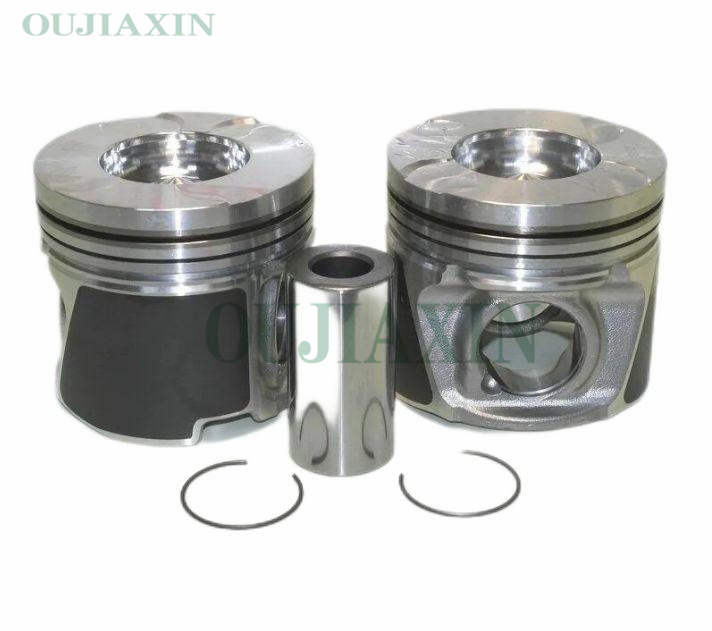

Piston Assembly Components: Includes piston, piston pin, piston pin circlips, and a three-piece piston ring set

OE Number: 13101-30140
