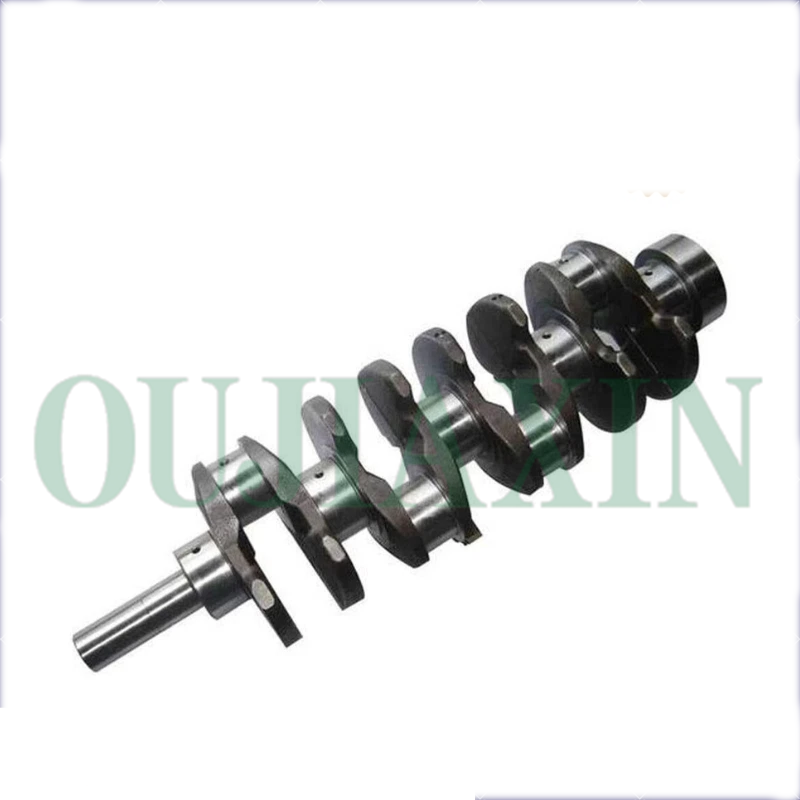

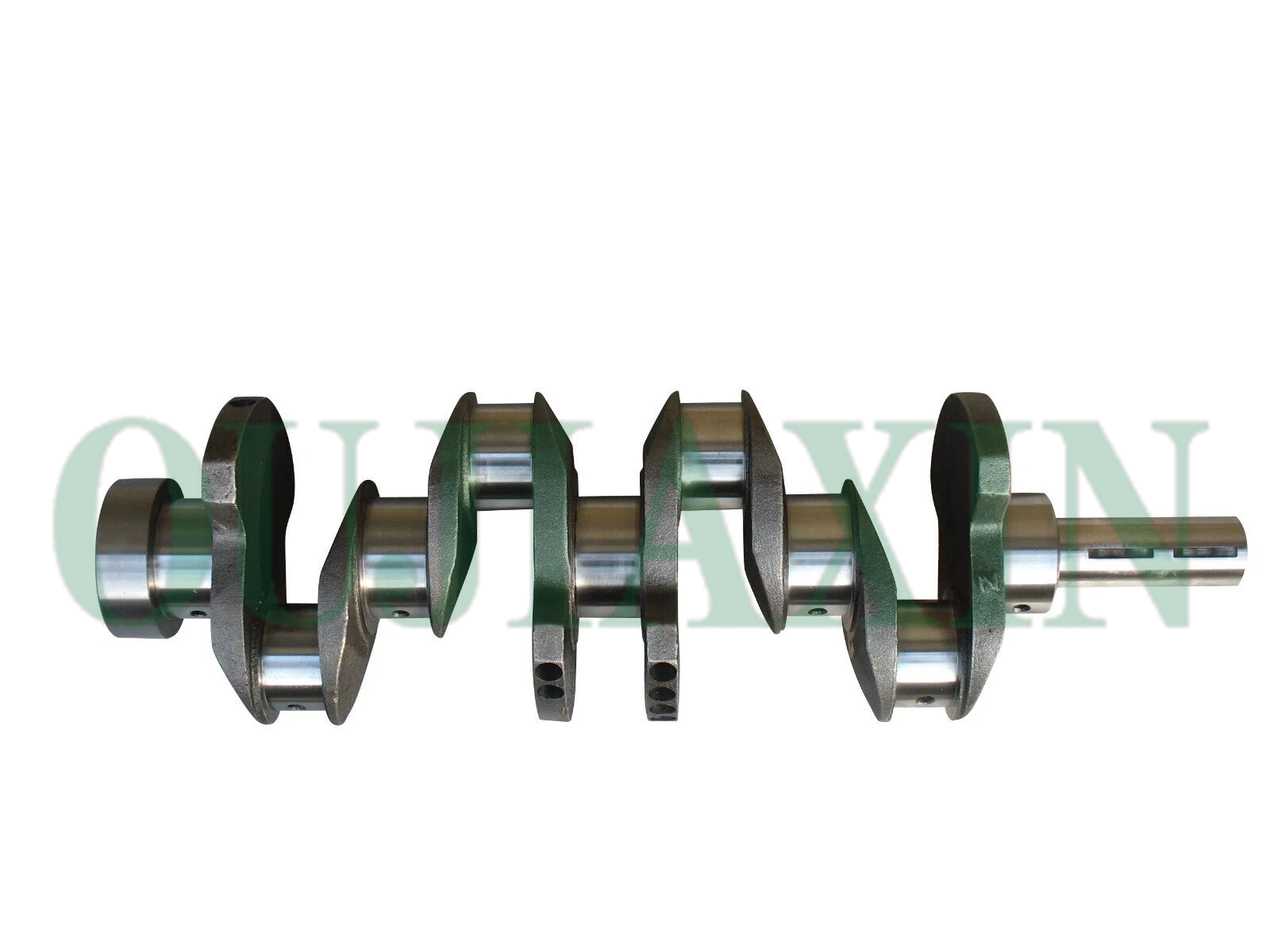

4D56 Crankshaft ME102601 MD376961 23111-42901 for Mitsubishi 4D56 4D56T Engine
Specifications for the Mitsubishi 4D56T 2.5L diesel engine crankshaft include: a stroke of 95.00 mm, a main journal diameter of 66.00 mm, and a connecting rod journal diameter of 53.00 mm. OEM reference numbers include MD376961, ME102601, and 23111-42901.
Description
Key Dimensions and Specifications
Stroke: 95.00 mm
Main journal diameter: 66.00 mm (nominal: 65.98 mm)
Connecting rod journal diameter: 53.00 mm (nominal: 52.98 mm)
Rear oil seal diameter: 80.00 mm
Total length: approx. 555 mm
Crankshaft bearing cap bolts: 40 Nm, followed by a further rotation of 35° to 39°;
Crankshaft pulley bolt: 265 Nm, loosen to 0 Nm, then retighten to 275 Nm.
