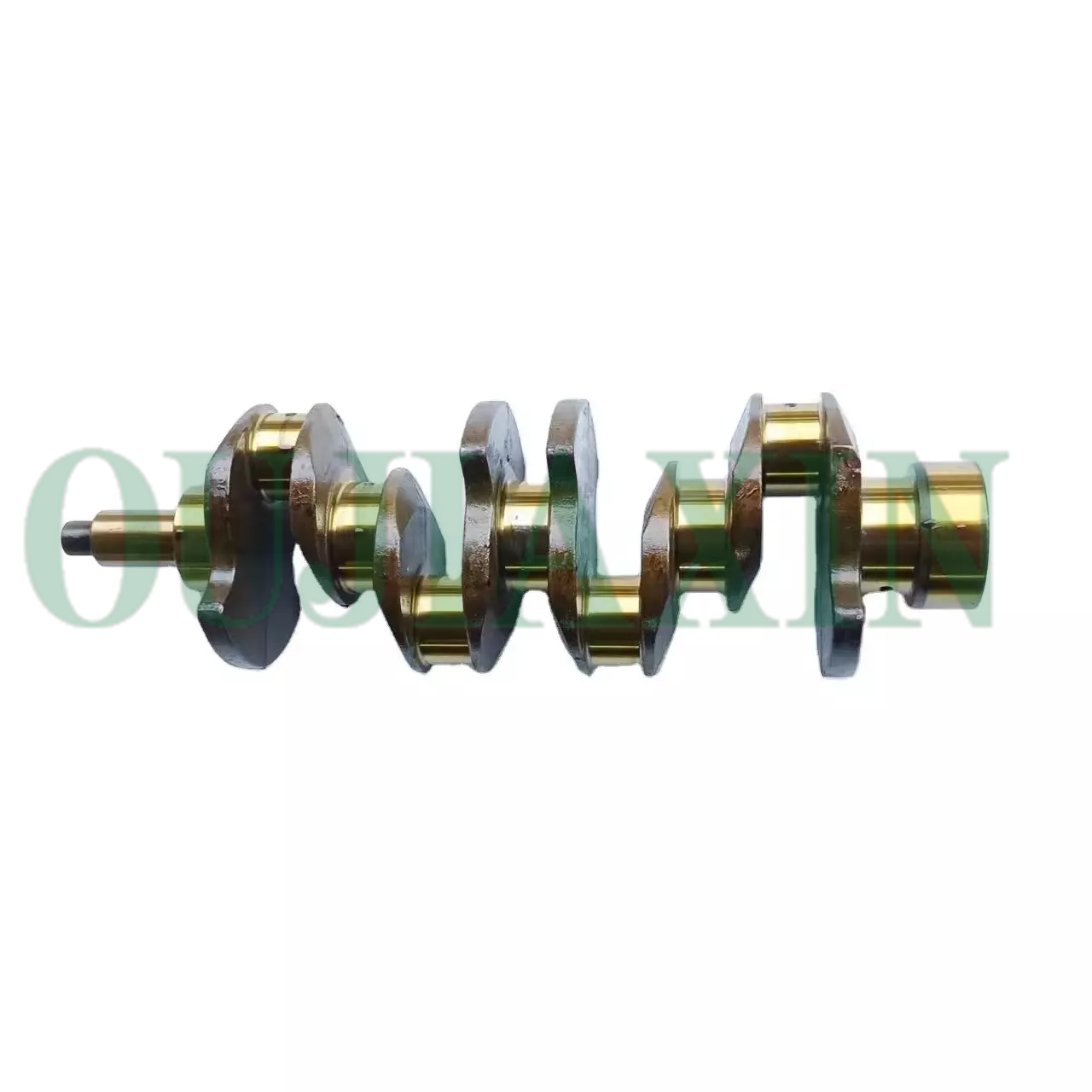

4BD1 4BD1T Crankshaft for Isuzu EngineNPR NQR 3.9L

The Isuzu 4BD1 3.9L engine has a crankshaft travel of 4.646 inches (118 mm) and a bore of 4.016–4.018 inches (102 mm). The main journal diameter is 3.1462–3.1471 inches, and the connecting rod journal diameter is 2.5167–2.5175 inches. It typically uses a 6-bolt flange connection design.

Category: Tag:

Description

Engine Type: 3.9-liter (235 cubic inches) four-cylinder diesel engine

Stroke: 4.646 inches (118 mm)

Main Journal Diameter: 3.1462 – 3.1471 inches (approx. 79.91–79.94 mm)

Connecting Rod Journal Diameter: 2.5167 – 2.5175 inches (approx. 63.92–63.94 mm)

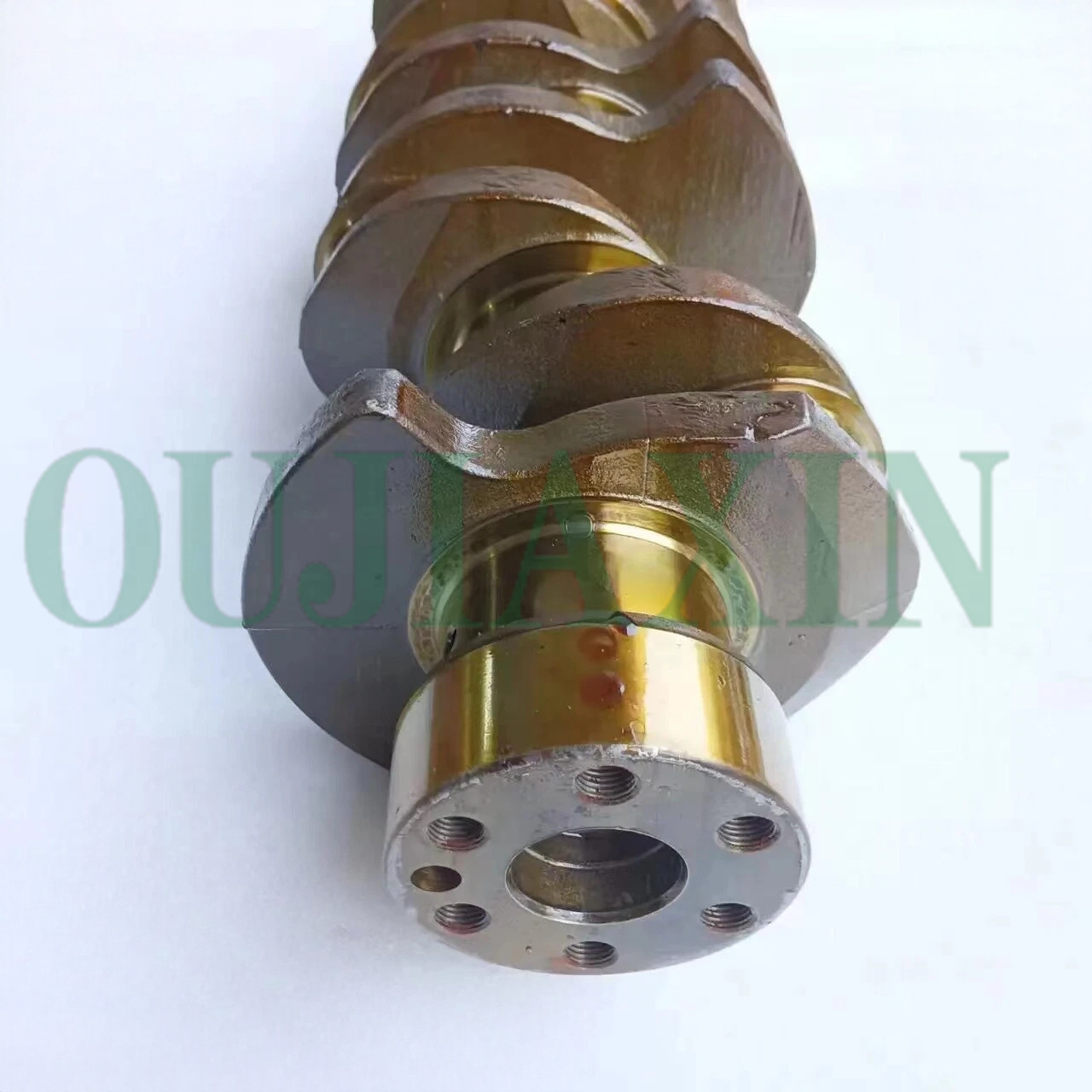

Flange Type: 6 bolt holes, 1 locating pin hole, flat

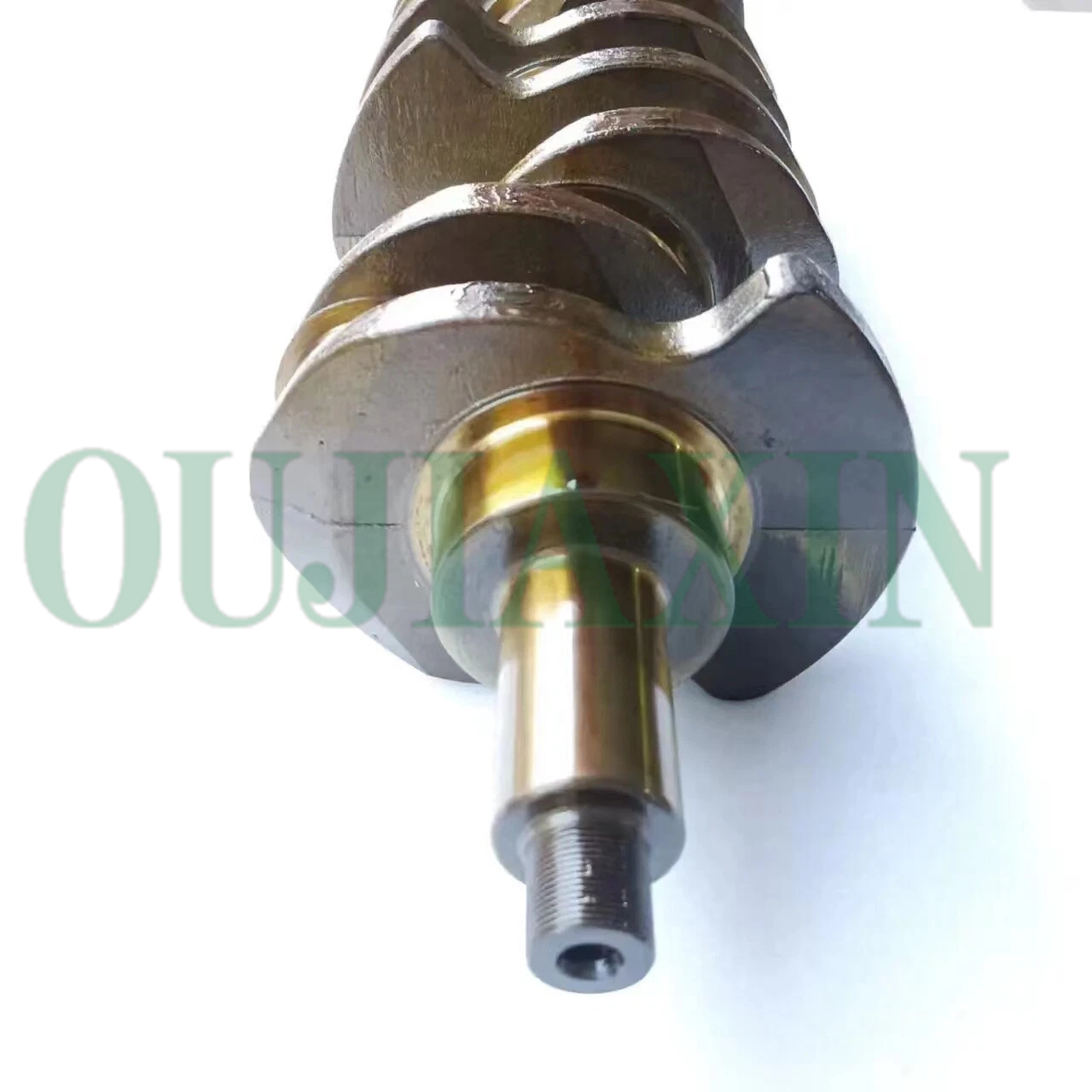

Front End: Threaded connection, 2 keyways

Material: Typically high-quality ductile iron
