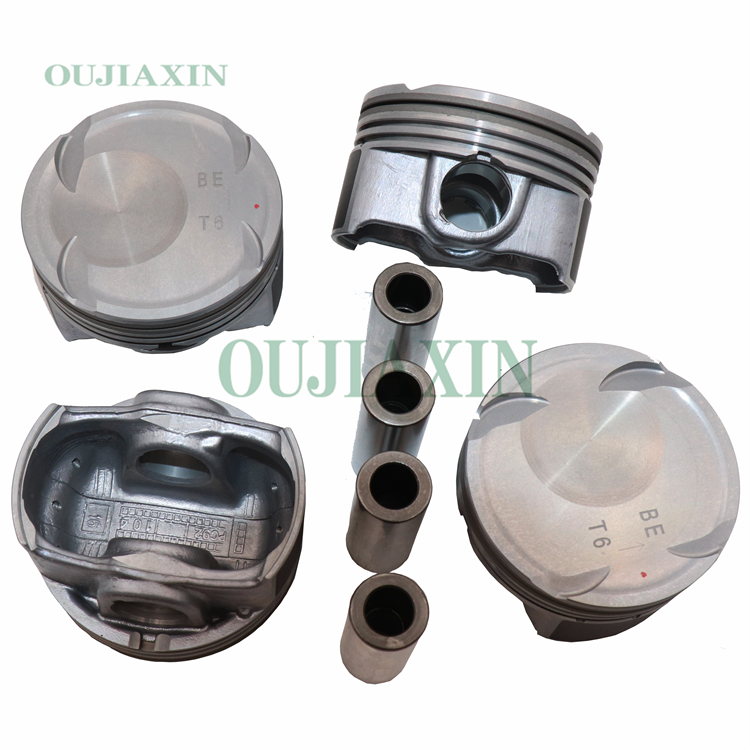

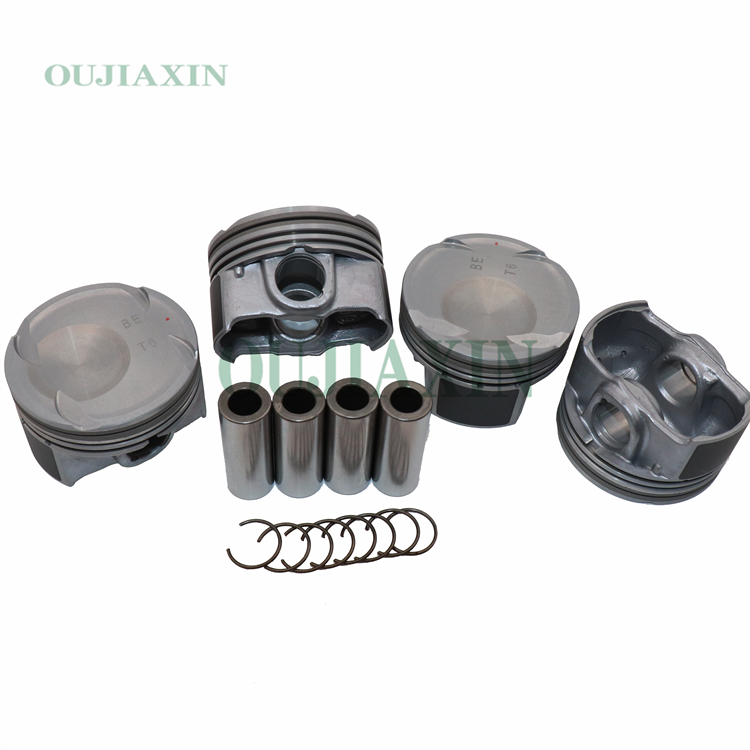

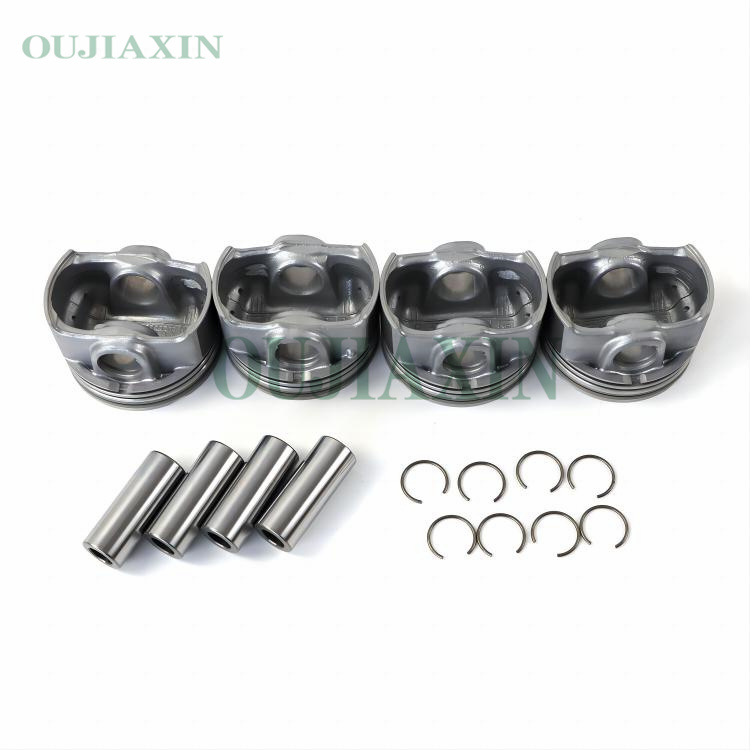

4 STD Piston & Rings For 2014-2020 Hyundai Elantra Kia Soul Forte 1.6T G4FJ
The Standard (STD) piston assembly for the Hyundai/Kia G4FJ 1.6L T-GDI engine features a cylinder bore of 77.00 mm. These pistons are specifically designed for high-performance aluminum applications. The outer diameter of the piston pin is typically 0.787 inches (20 mm).
Description
G4FJ STD Piston Assembly Key Specifications:
Bore: 77.00 mm (3.0315 inches)
Piston Size: Standard (STD) – 77.00 mm
Piston Pin Diameter: 0.787 inches (20 mm)
Engine Model: 1.6L T-GDI (Gamma GDI Turbocharged)
OEM Part Numbers (Reference): 23041-2B600, 23041-2B610, 23041-2B620
Compatible Models: Hyundai Veloster, Tucson, Kona, Elantra; Kia Sportage, Ceed/ProCeed, Soul
