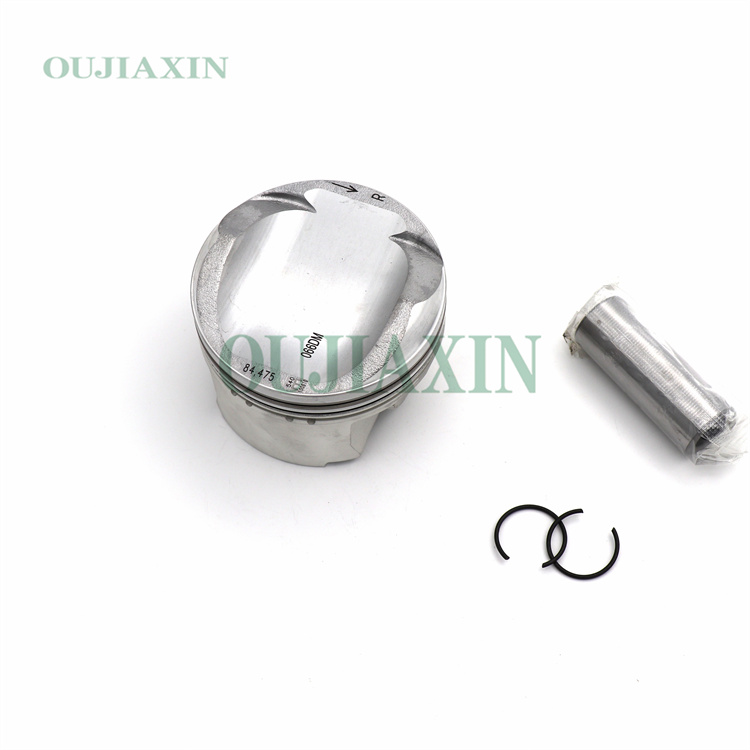

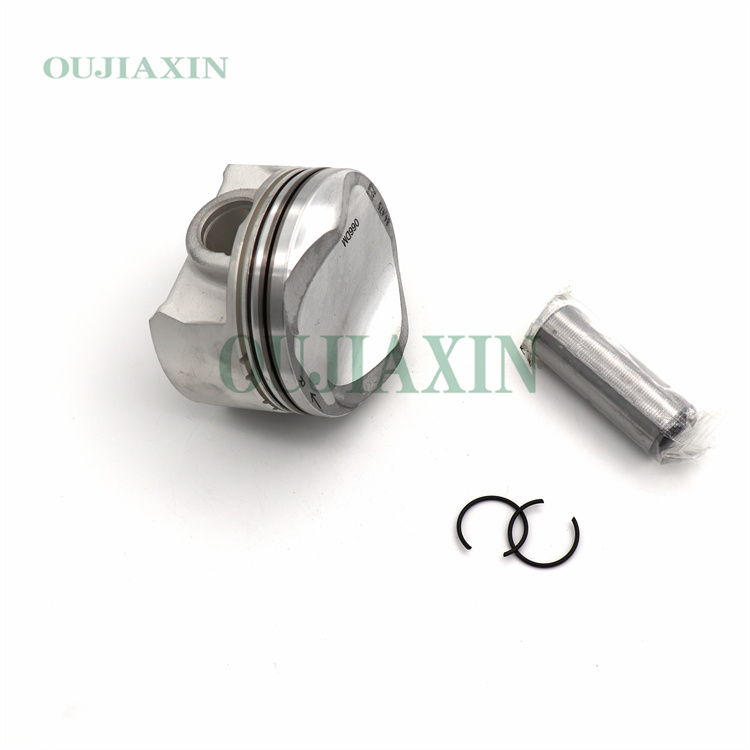

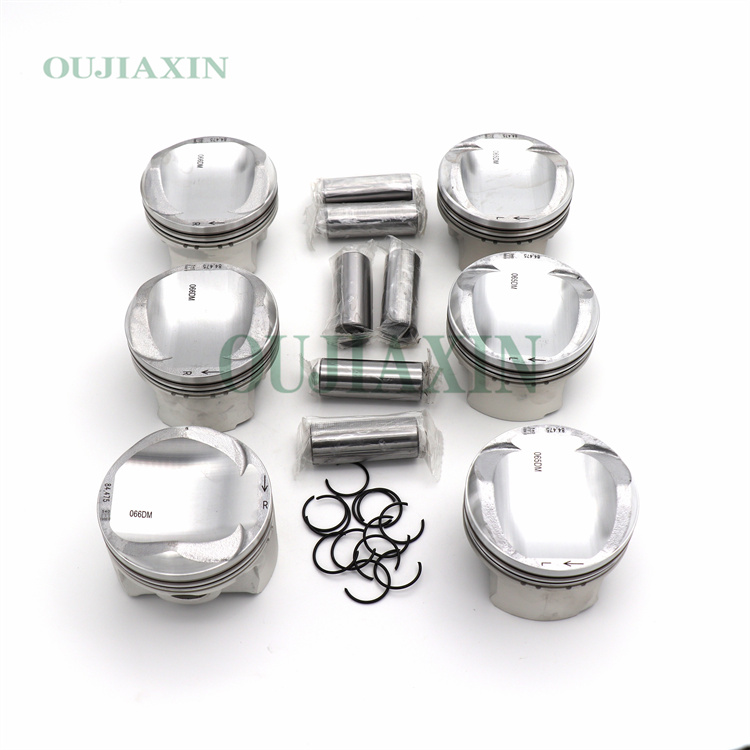

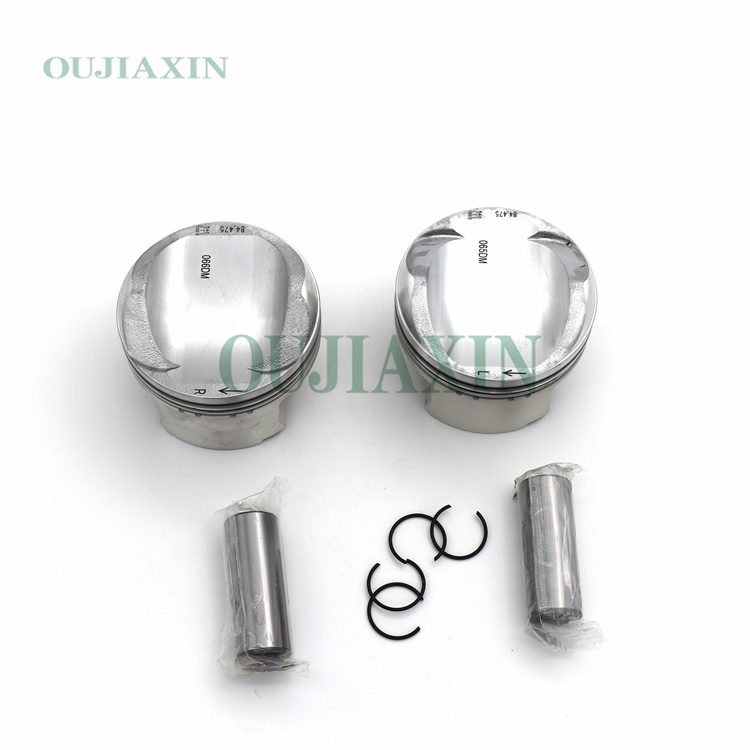

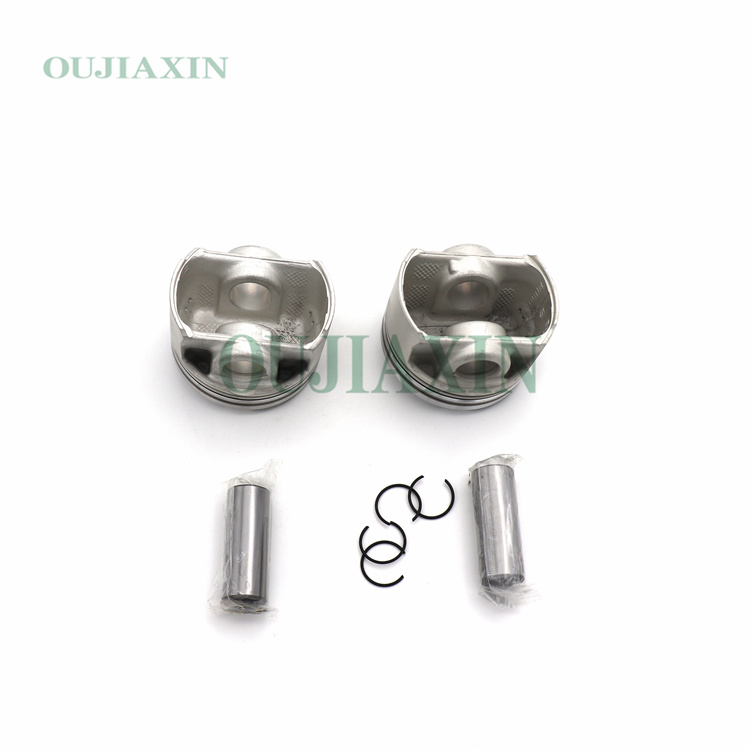

3.0T Piston Ring Assembly Kit for Volkswagen Touareg, Audi A6, A8, Q7 (CGEA, CAKA, CGWC) 06E107065DM
The Audi CAKA 3.0T piston assembly features a nominal bore of 84.51 mm, a piston pin diameter of 22 mm, and a compression ratio of 10.5:1. This assembly is specifically designed for the 3.0L V6 TFSI engine and is typically equipped with a 1.2 mm top compression ring, a 1.5 mm second compression ring, and a 2.0 mm oil control ring; the corresponding OEM part numbers are 06E107065DM and 06E107066DM.
Description
Engine Code: CAKA (3.0L V6 Supercharged)
Bore: 84.51 mm (Standard Size)
Piston Pin Diameter: 22 mm
Compression Ratio: 10.5:1
Piston Ring Dimensions:
Top Ring: 1.2 mm
Second Ring: 1.5 mm
Oil Ring: 2.0 mm
OEM Part Number (Piston): 06E107065DM (Cylinders 4-6), 06E107066DM (Cylinders 1-3)
OEM Part Number (Piston Ring Set): 06E198151Q
Applicable Models: 2009-2012 Audi A4/S4; 2010-2011 A5/S5 Cabriolet; 2009-2011 A6/S6
