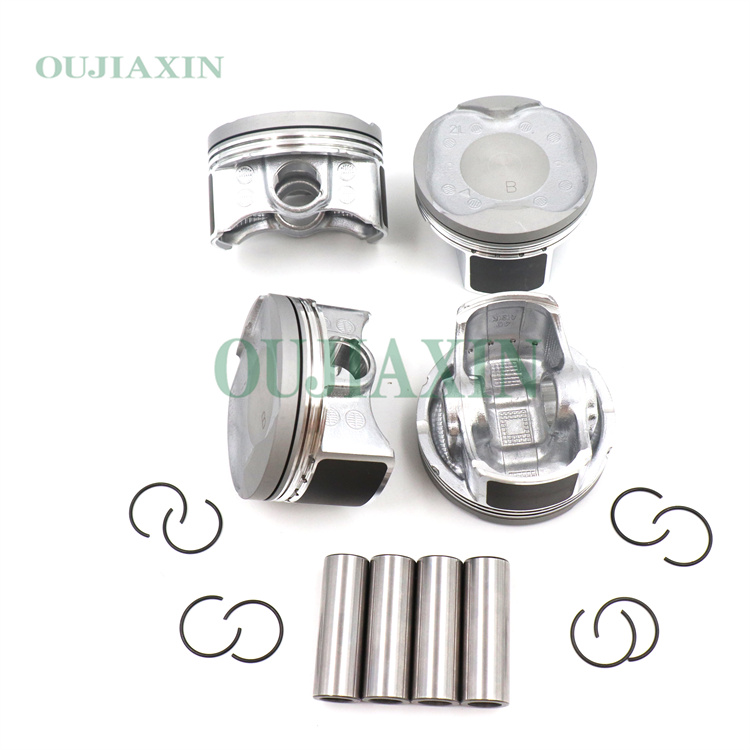

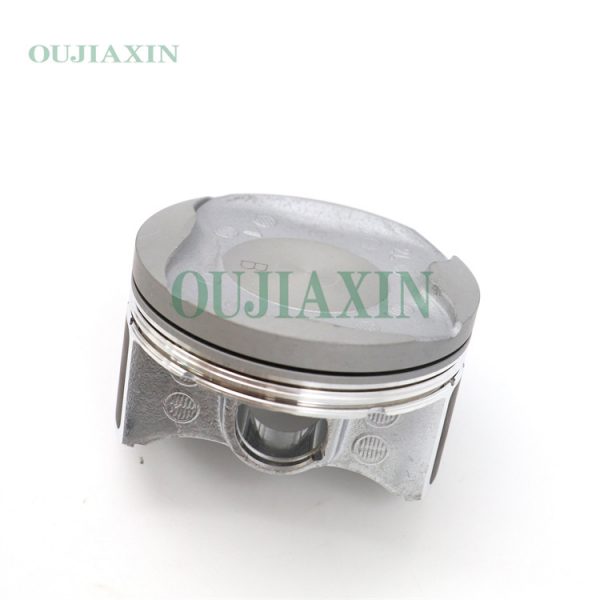

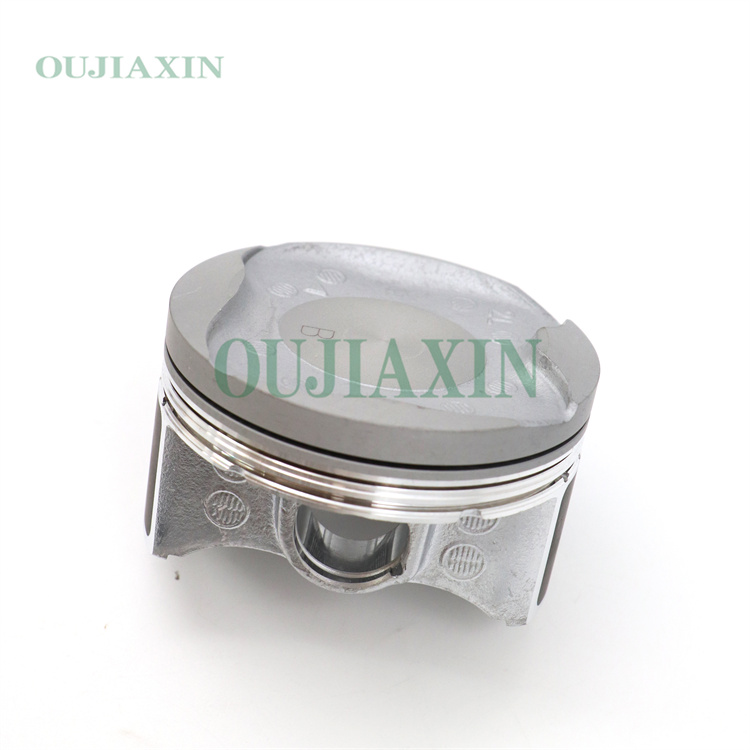

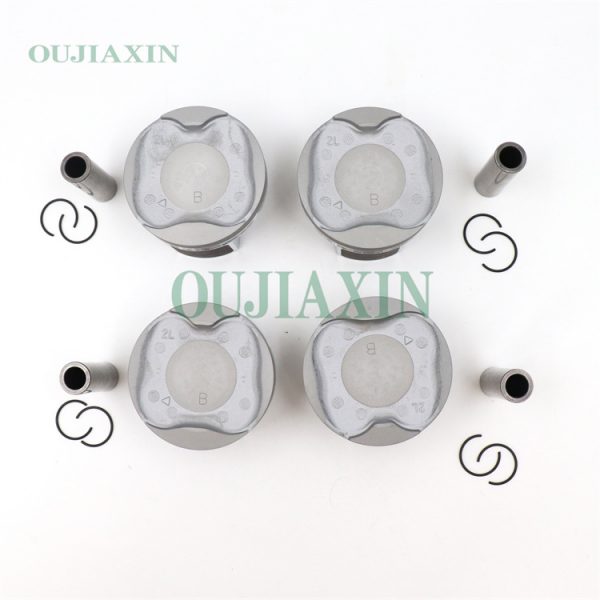

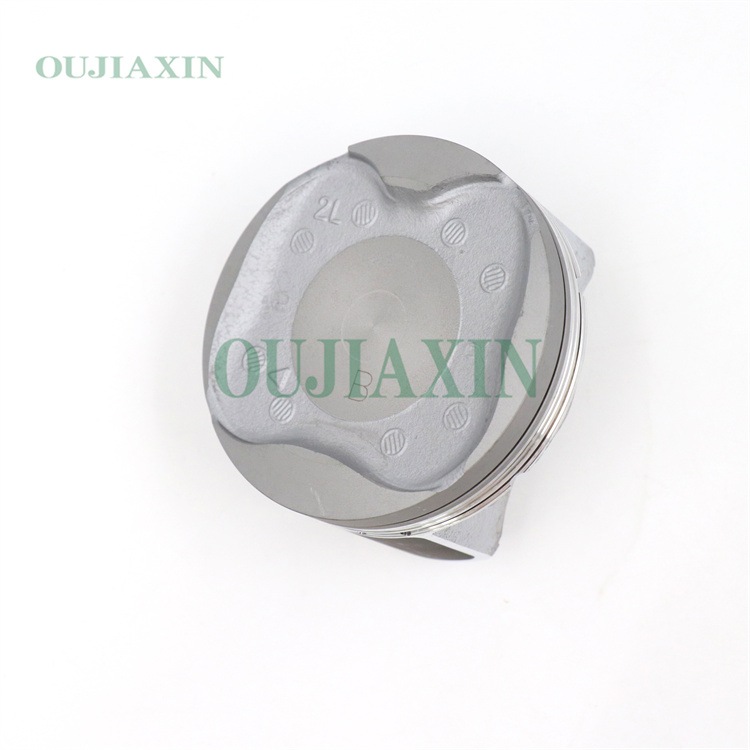

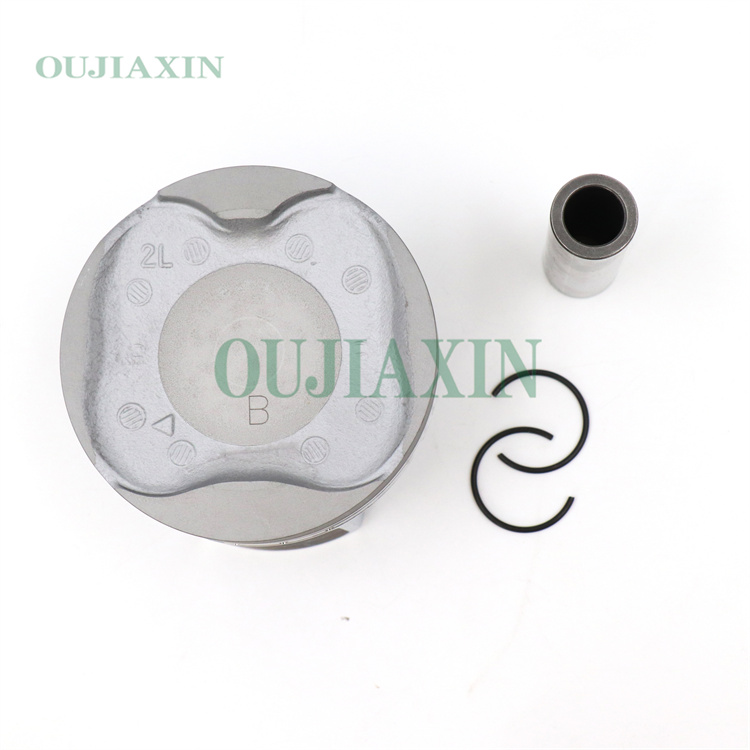

2ZR-FE Engine Piston Kit for Toyota Prius, Corolla, and Lexus CT200h 1.8L 13101-37071

Toyota 2ZR-FE/FAE STD (Standard)
This piston assembly is specifically designed for 1.8L four-cylinder engines with a bore diameter of 80.50 mm.
This cast ZL109 aluminum alloy piston features a compression height (CD) of 28.50 mm,
a total length (TL) of 50.10 mm,
and a piston pin diameter of 20.012 mm.
Its piston ring groove dimensions are typically 1.0 mm (top ring), 1.0 mm (second ring), and 1.5 mm (oil ring).

Category: Tag:

Description

Engine: Toyota 2ZR-FE / 2ZR-FAE (1.8L, 16-valve, DOHC)
Bore: 80.50 mm
Piston Diameter: Standard Size (STD) 80.50 mm
Piston Pin Diameter: 20.012 mm
Compression Height (CD): 28.50 mm
Total Length (TL): 50.10 mm
Piston Ring Dimensions: 1.0 mm (Top Ring), 1.0 mm (Second Ring), 1.5 mm (Oil Ring)
Material: Cast ZL109 Aluminum Alloy
