2TR-FE Engine Overhaul Rebuild Kit For 05-15 Toyota Tacoma 4Runner 2.7L DOHC 16V (For: Toyota)

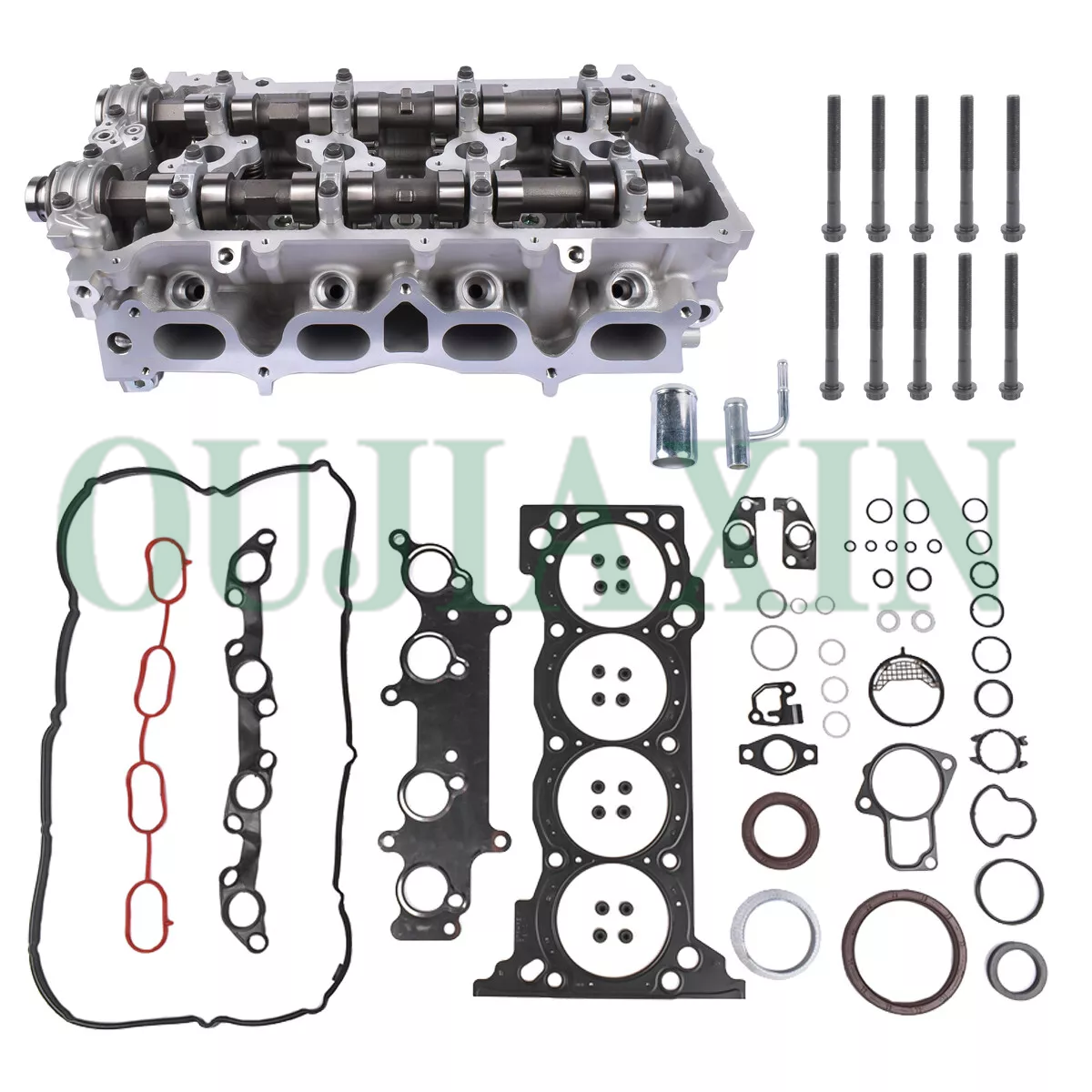

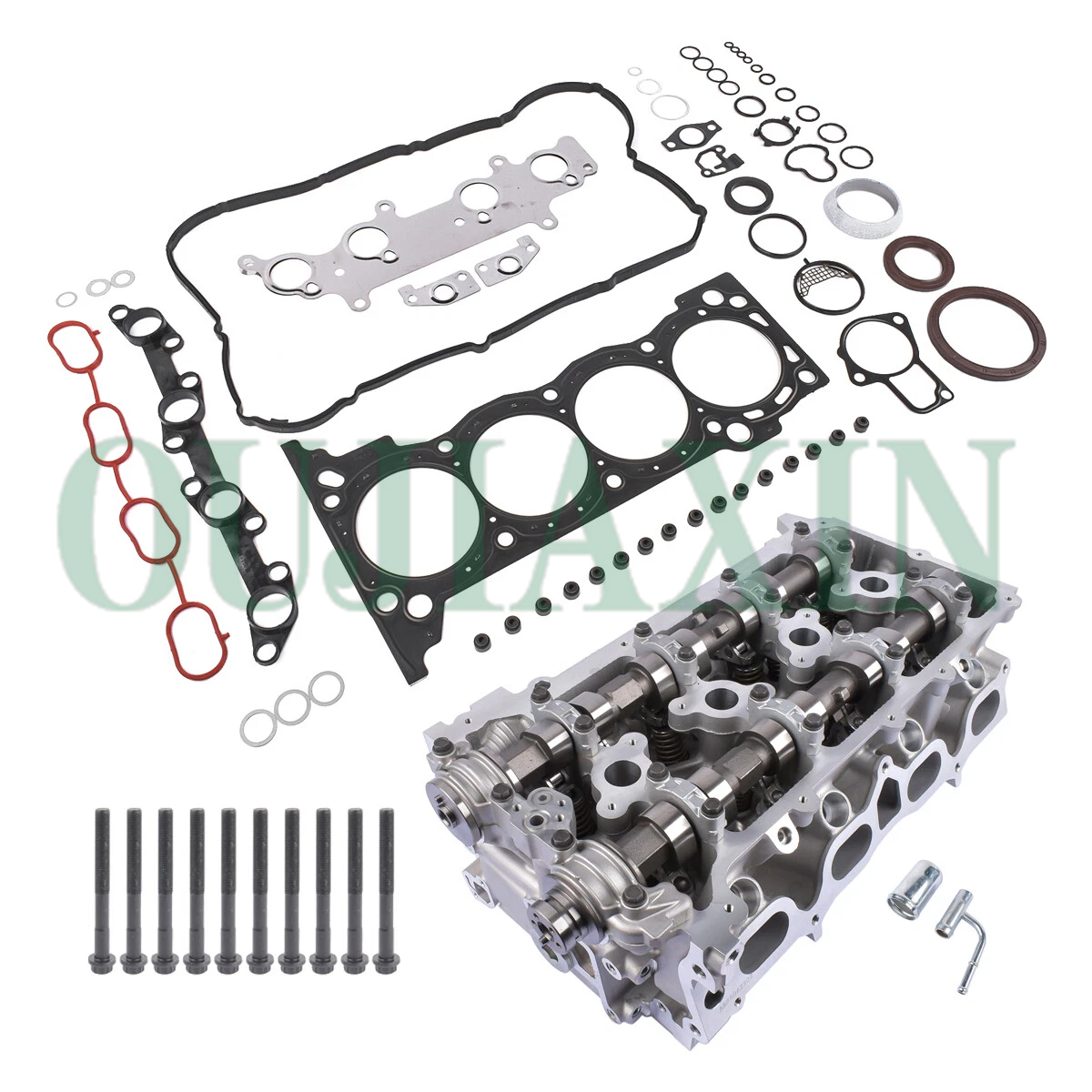

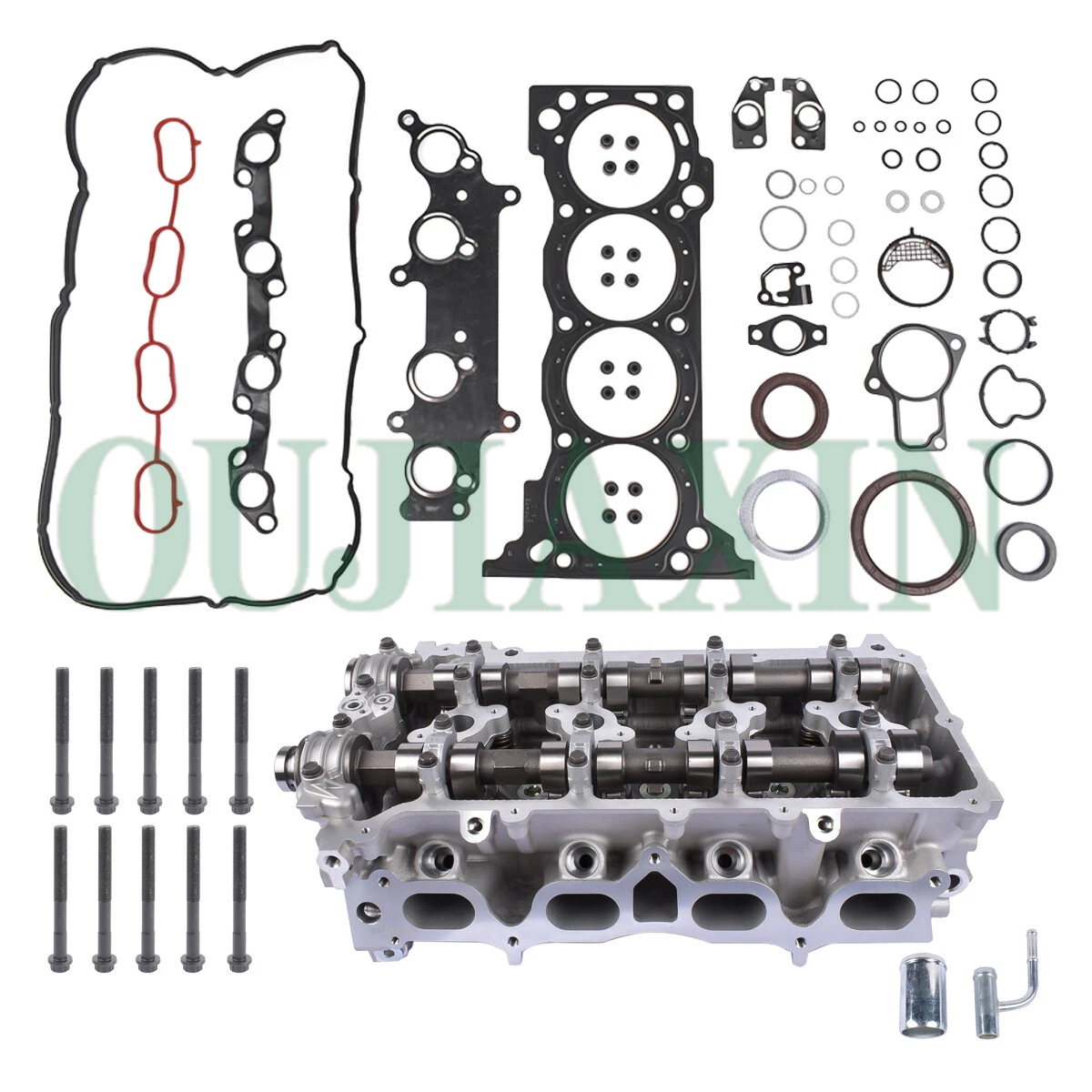

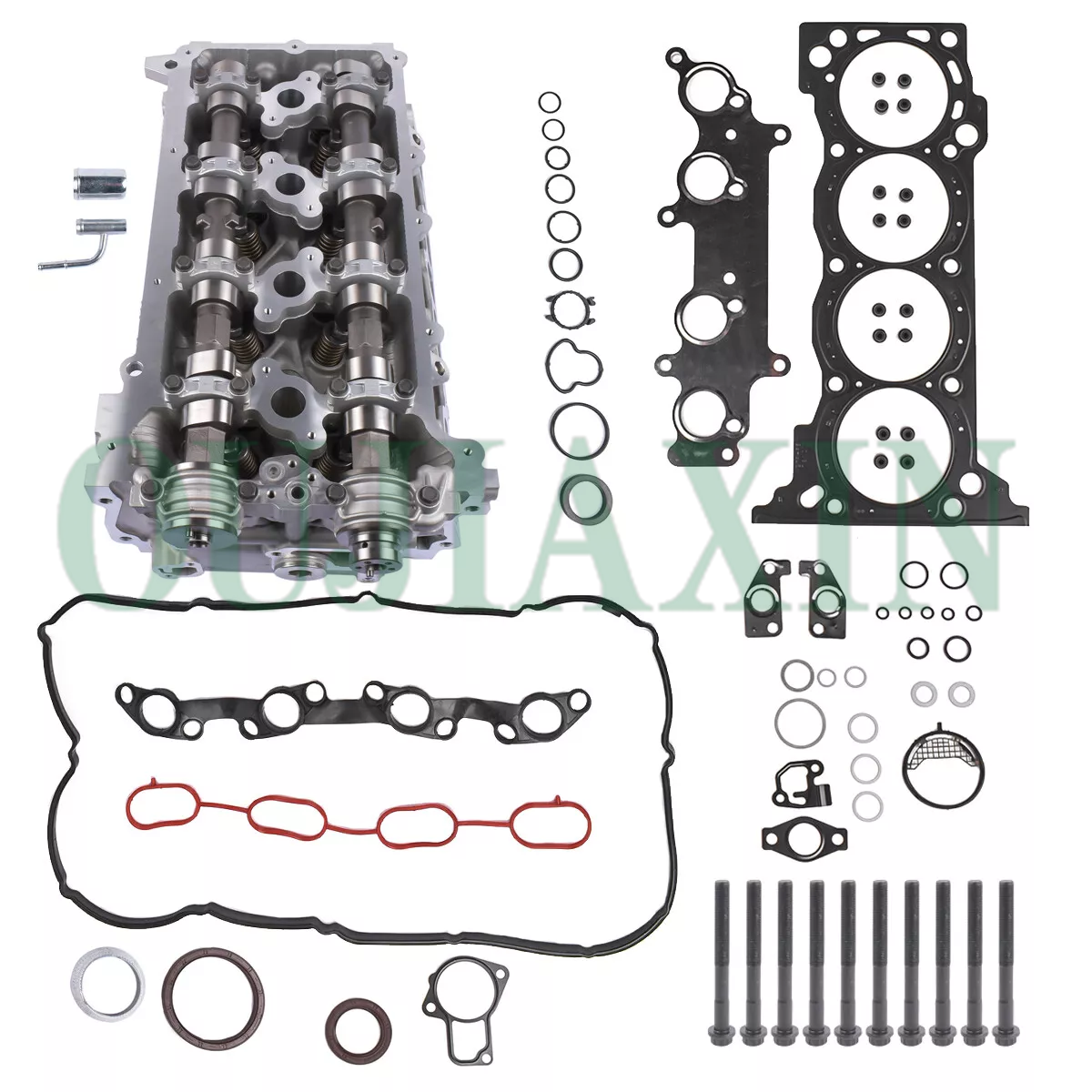

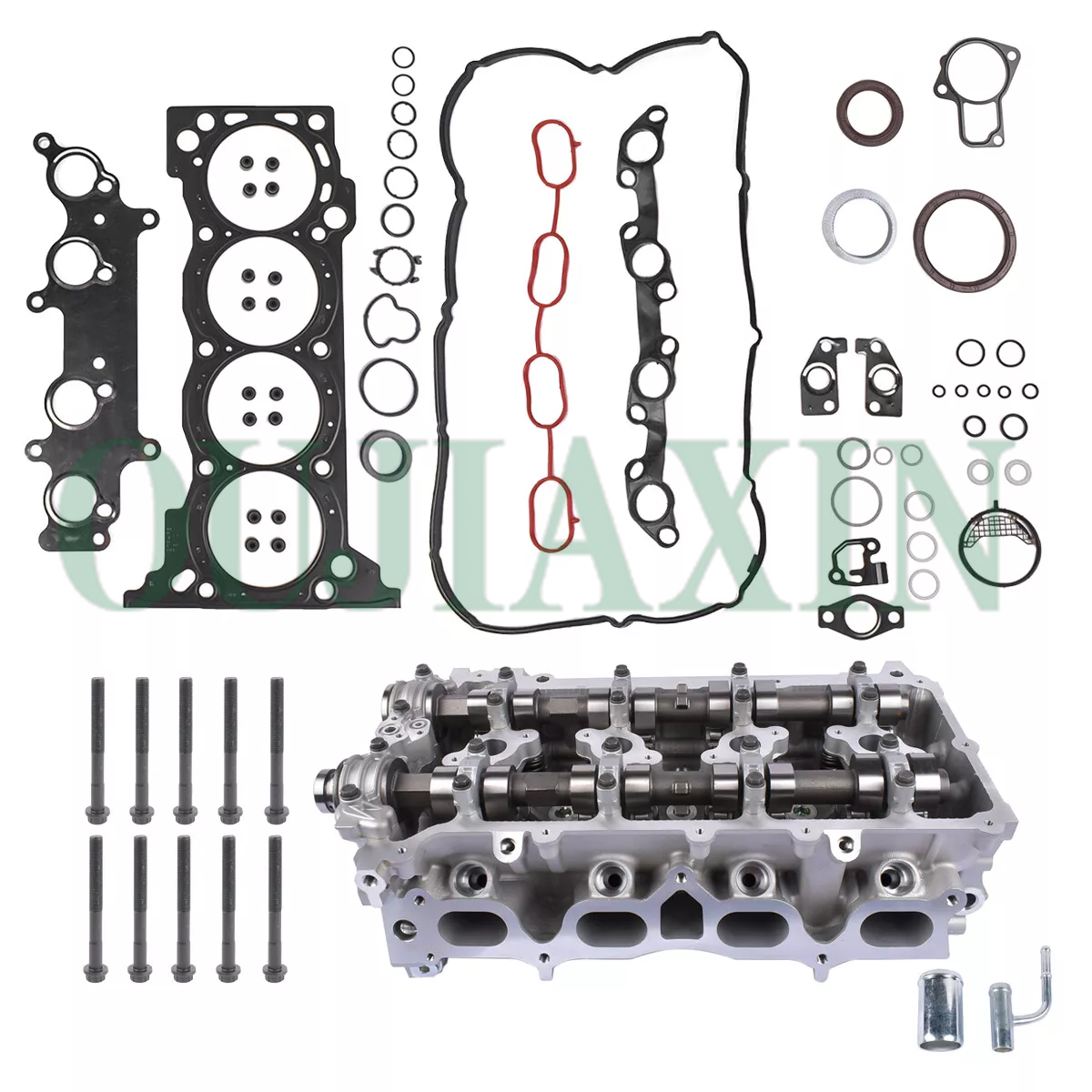

The Toyota 2TR-FE (2.7L DOHC 16-Valve) Engine Overhaul Kit is suitable for the 2005–2016 model years of the Tacoma and 4Runner. This overhaul kit typically includes a complete set of gaskets (including MLS multi-layer steel head gaskets), pistons with piston rings (standard bore size: 95.00mm), piston pins, main and connecting rod bearings, as well as a complete timing chain assembly (including sprockets and guides). Such overhaul kits are typically offered in the standard 95mm bore specification, with piston ring dimensions configured as follows: the first and second compression rings are both 1.2mm, and the oil ring is 2.0mm.

Category: Tag:

Description

2TR-FE Kit Key Specifications and Components:
Engine Code: 2TR-FE (2694cc, Inline-4, DOHC, 16-valve).
Bore/Stroke: Bore 95.0mm (3.74 in), Piston Stroke 95.0mm (3.74 in).
Gasket Kit: Multi-Layer Steel (MLS) head gasket, valve cover gasket, intake/exhaust manifold gaskets, and crankshaft oil seals.
Piston Kit: 4 pistons (typically Alfin-type), supplied with 4 piston pins and circlips; typical standard bore size is 95.00mm.
Piston Rings: Standard specification 95.00mm (1.2mm × 1.2mm × 2.0mm).
Bearings: Main bearing set and connecting rod bearing set (available in standard size or oversize—typically 0.25mm or 0.50mm).
Timing Chain Kit: Includes timing chain (outer), oil pump chain (inner), tensioner (ratchet-type), guide rails, and crankshaft/balancer shaft sprockets.
