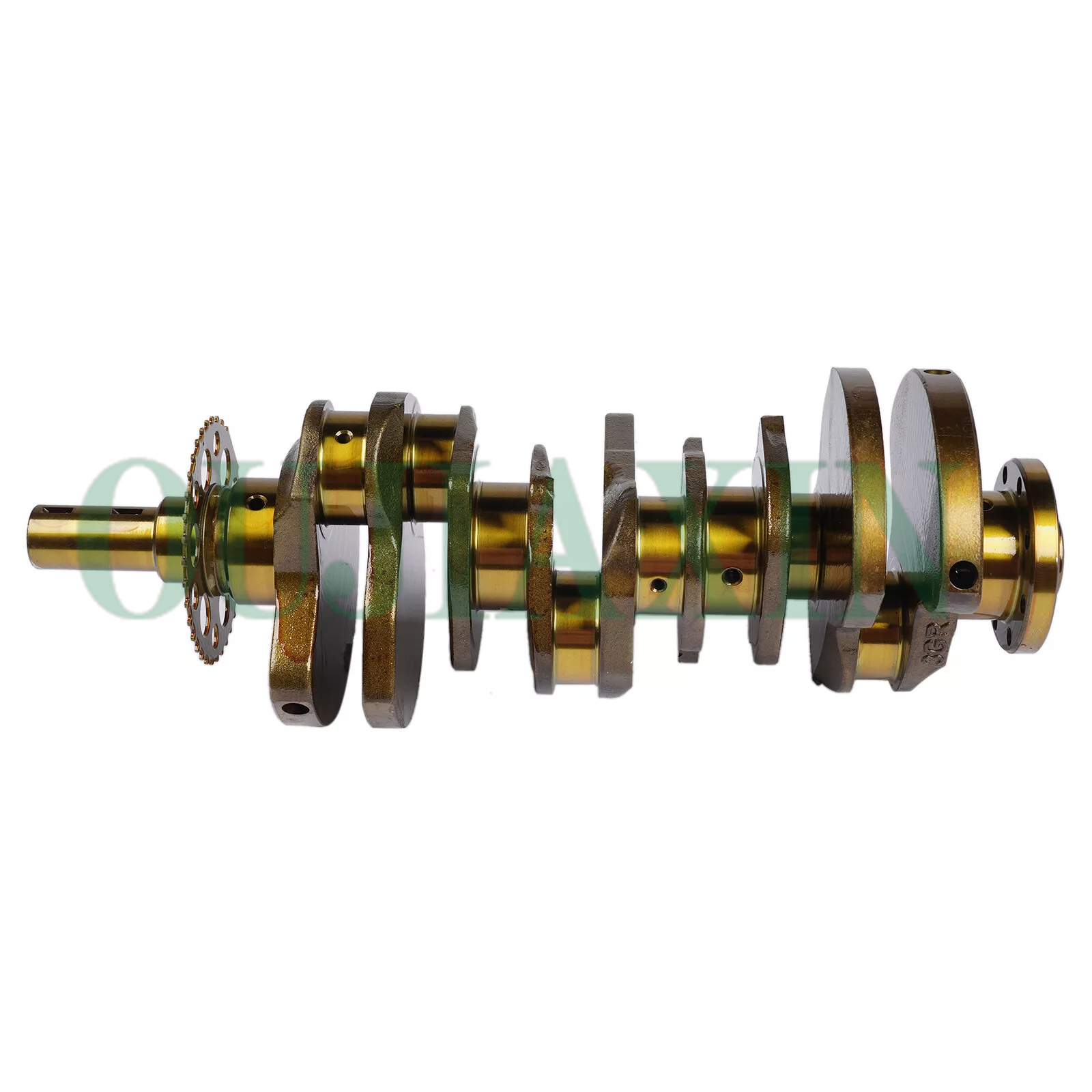

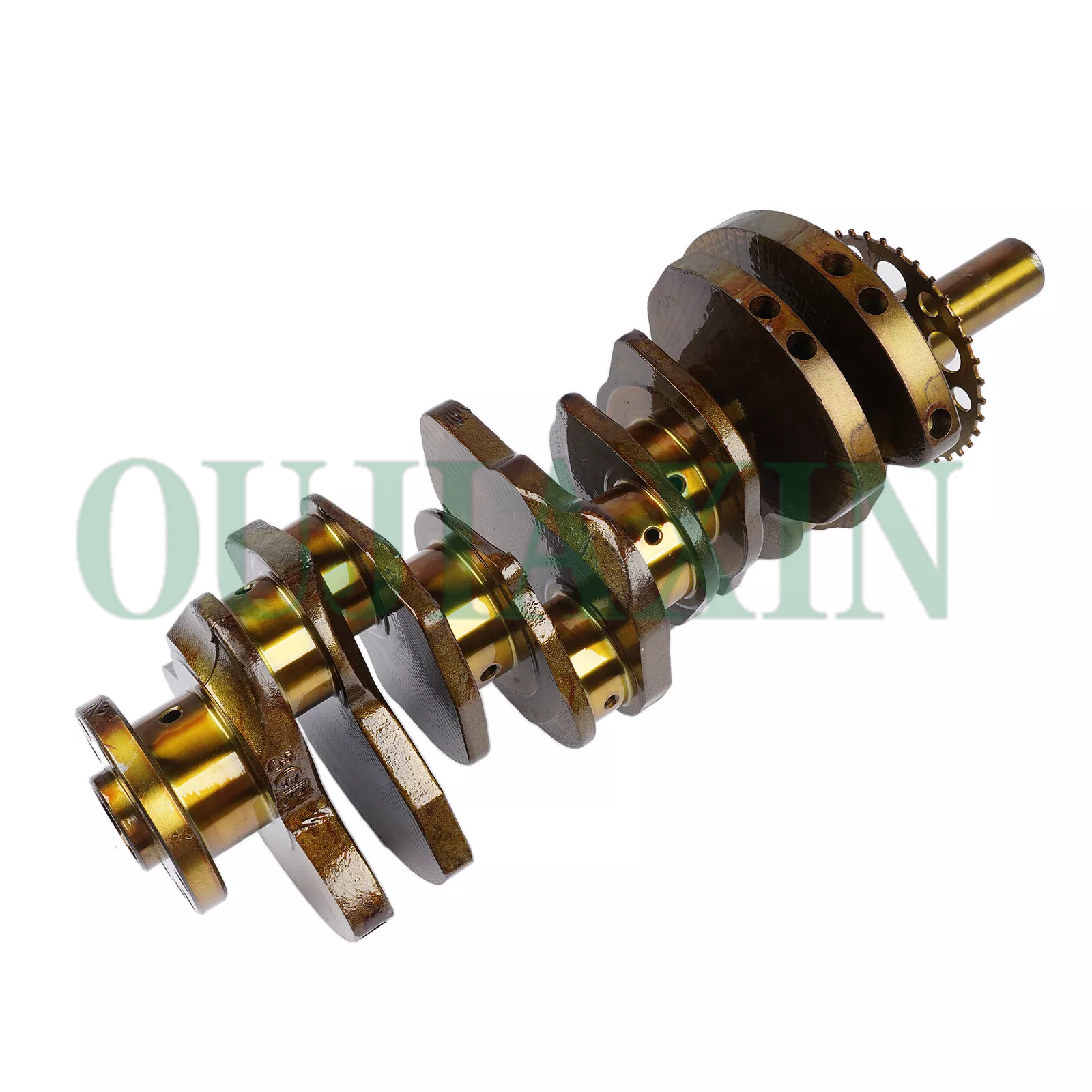

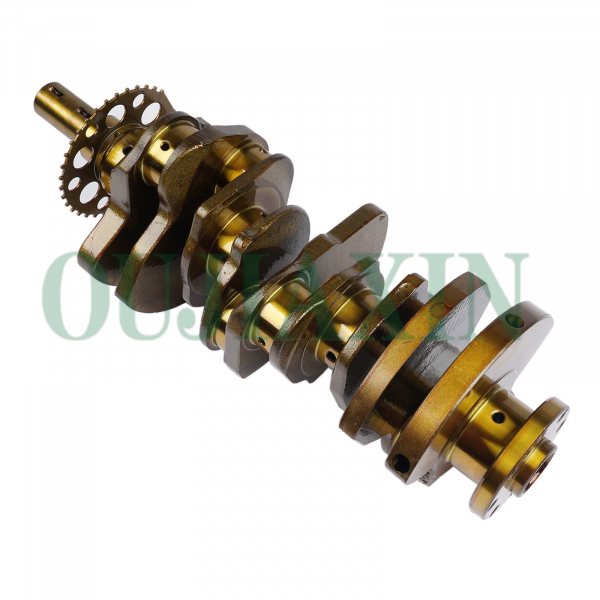

2GR 3GR Engine Crankshaft for Lexus ES350 Toyota Avalon Sienna Highlander 3.5 V6

The Toyota 2GR (3.5L V6) crankshaft is a robust forged steel component designed to withstand high loads and high engine speeds. It features five counterweights and utilizes a 60-degree crankpin angle to achieve balance for the V6 engine.

Category: Tag:

Description

Engine stroke: 83.0 mm
Main journal diameter: 61.000 mm (exact factory dimension determined by grade markings; ranges from 60.994 to 61.000 mm in 0.001 mm increments)
Connecting rod journal/pin diameter: 52.0 to 53.0 mm (standard size approx. 52.992 to 53.000 mm)
Thrust clearance: 0.04 to 0.24 mm (maximum wear limit: 0.30 mm)
Thrust washer thickness: 2.43 to 2.48 mm
Total length: approx. 481 mm

The part number typically corresponds to 13401-31040, 13401-0P030, or 13401-0P031.
