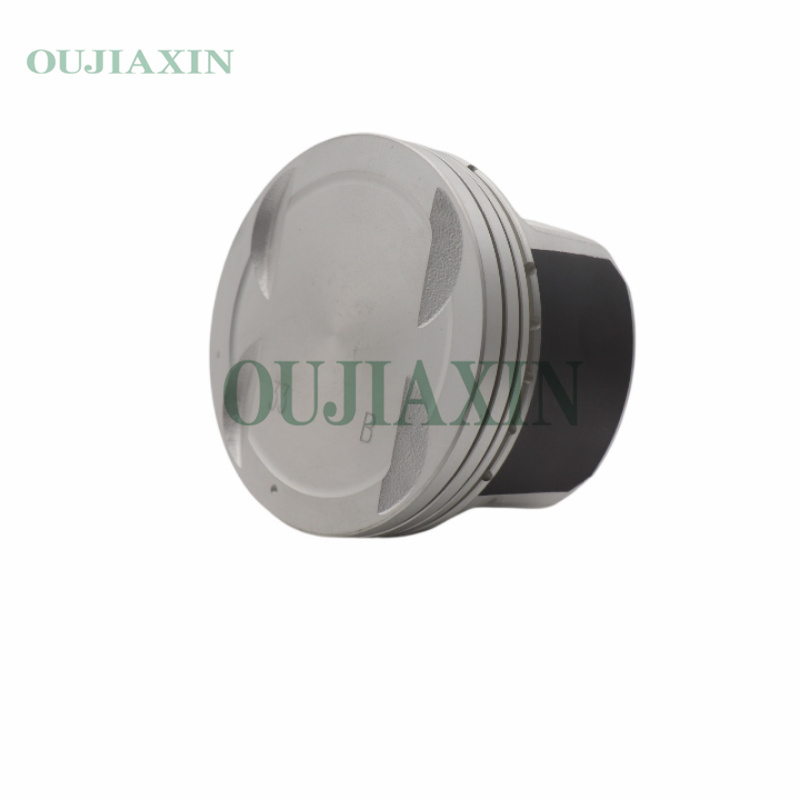

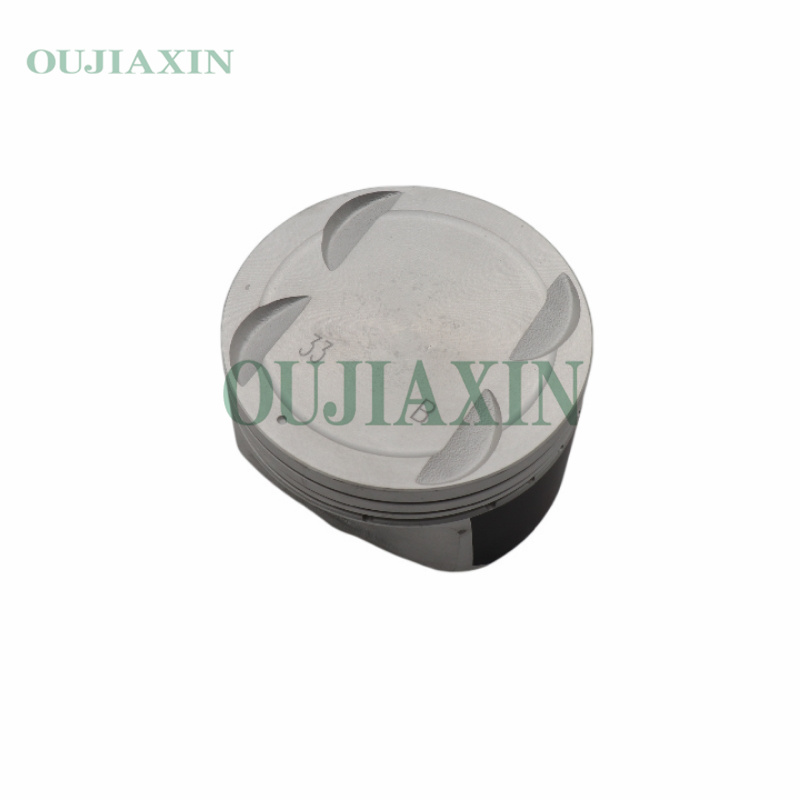

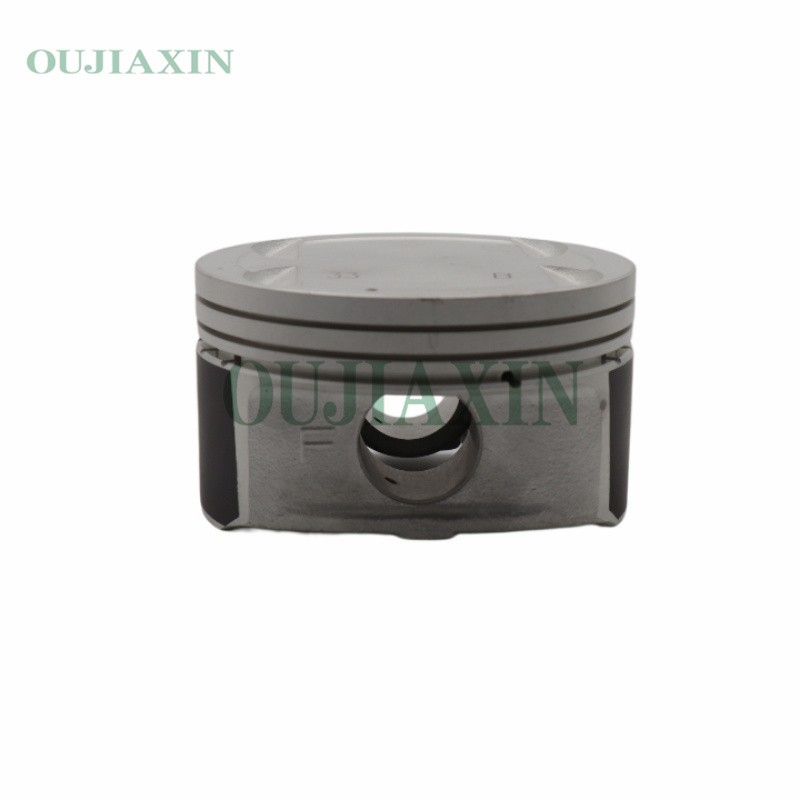

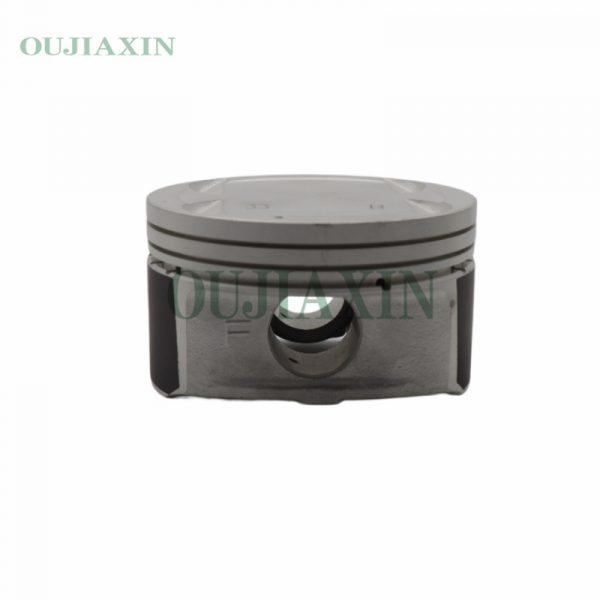

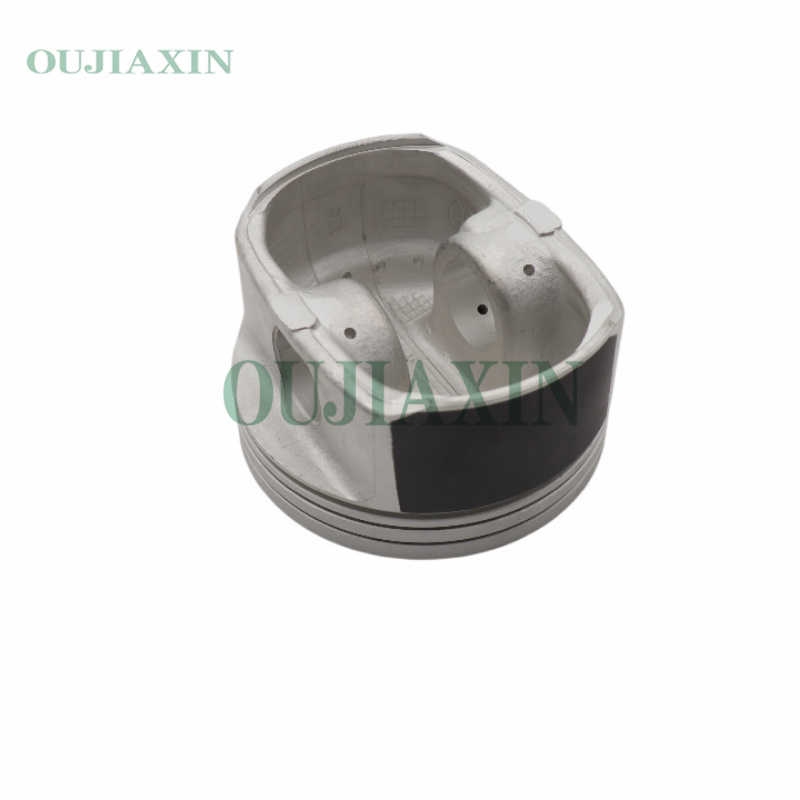

Piston Kit for Hyundai/Kia G6DA G6DJ 3.3L (23410-39800)

23410-39800 Piston Kit for Hyundai/Kia G6DA G6DJ 3.3L

The Hyundai/Kia G6DA 3.3L Lambda V6 engine features a bore of 92 mm and a stroke of 83.8 mm, typically utilizing a compression ratio of 10.4:1. The clearance between the pistons and cylinders is generally maintained within the range of 0.020 to 0.061 mm. This engine is characterized by its use of pistons with a diameter of 92 mm (3.622 inches) for the G6DA (3.3L) model.

Description

Piston Assembly Specifications (G6DA/Lambda 3.3L):
Engine Type: V-type, DOHC, 6-cylinder.
Bore (Piston Diameter): 92 mm (3.6220 in).
Stroke: 83.8 mm (3.2992 in).
Compression Ratio: 10.4:1.
Piston-to-Cylinder Clearance: 0.020–0.061 mm (0.0008–0.0024 in).
Piston Pin Diameter: 23.001–23.006 mm (0.9055–0.9057 in).
Piston Pin Bore Inner Diameter: 23.016–23.021 mm (0.9061–0.9063 in).
Piston Pin Bore Clearance: 0.01–0.02 mm (0.0039–0.0078 in).
Connecting Rod Small End Inner Diameter: 22.974–22.985 mm (0.9045–0.9049 in).
Connecting Rod Small End Bore Clearance: 0.016–0.032 mm (0.0006–0.0012 in).
