23410-2F995 Hyundai OEM Piston, Piston Pin, and Circlip Assembly for D4HB 2.2L Engine

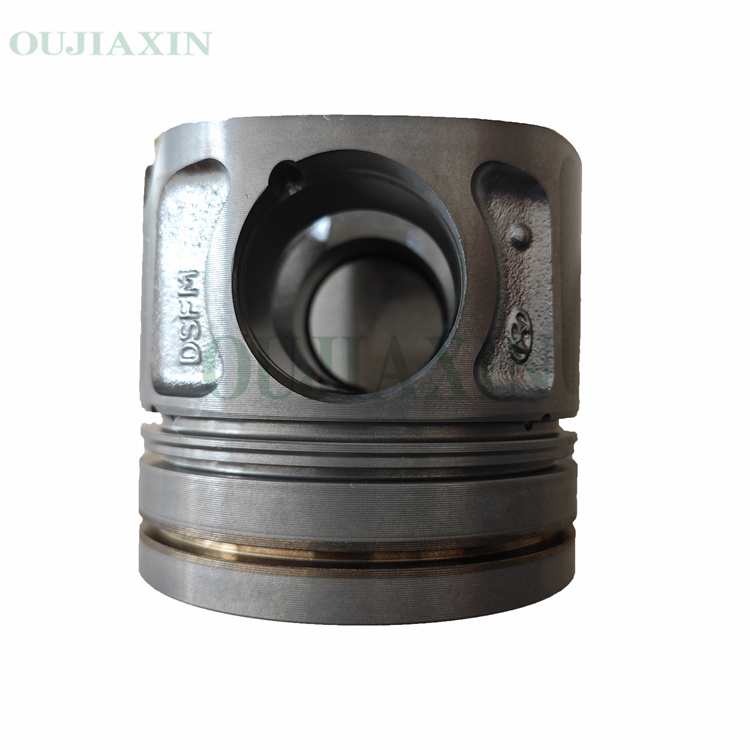

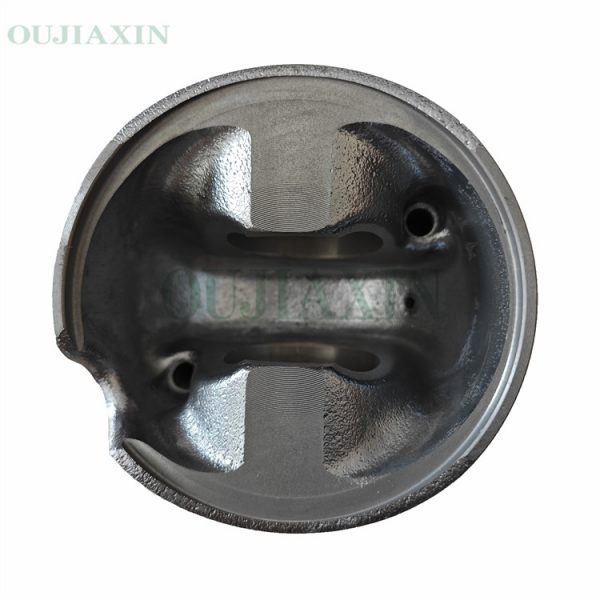

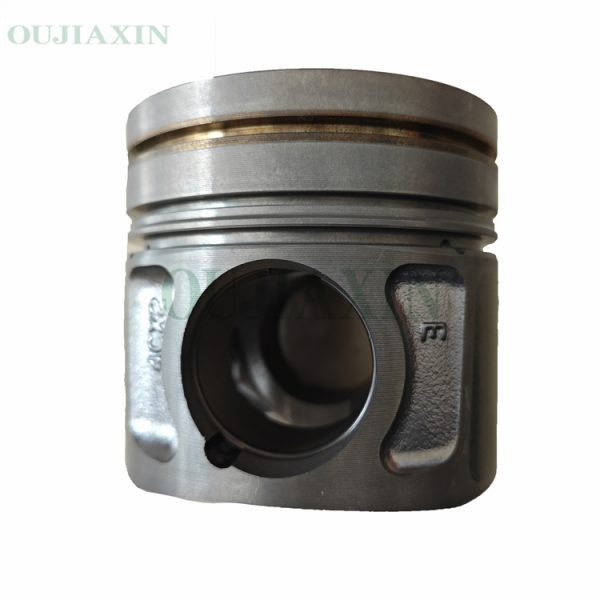

The Hyundai D4HB Piston Assembly (Part Number 23410-2F975) is a standard-size (STD) aluminum alloy diesel piston designed specifically for the 2.2L CRDi engine, primarily utilized in Hyundai Santa Fe and Kia Sorento models. This piston features a bore diameter of 85.40 mm, a compression height of 50.00 mm, and a piston pin diameter of 34.00 mm.

Category: Tag:

Description

The main specifications for the 23410-2F975 piston include:
Engine Type: 2.2L 16-Valve DOHC Diesel Engine (D4HB).
Diameter (Bore): 85.40 mm (STD / Standard Size).
Compression Height: 50.00 mm.
Piston Pin Diameter: 34.00 mm.
Total Piston Length: 76.90 mm.

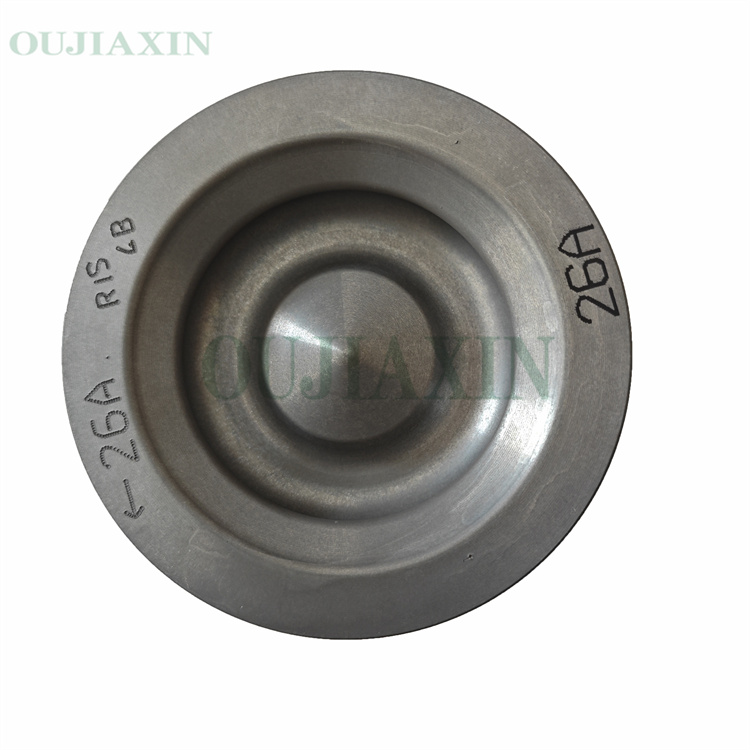

Combustion Chamber Diameter: 51.50 mm.
Combustion Chamber Depth: 14.50 mm.
Piston Ring Heights: 1st Ring: 2.5 mm; 2nd Ring: 2 mm; Oil Ring: 3 mm.
Compatibility: Suitable for 2.2 CRDi engines found in Hyundai Santa Fe, Grand Santa Fe, and Grandeur models, as well as Kia Carnival/Sedona models.This component is frequently interchangeable with OE numbers 23410-2F910, 23410-2F911, and 23410-2F912. It is specifically designed for high-efficiency diesel engines utilizing CRDi technology.
