Engine Overhaul Kit for Toyota 1.6L 1ZR-FE Engine

1ZRFE Engine Rebuild Overhaul Kit Crankshaft Rods Timing For Toyota 1.6L 1ZR-FE

The Toyota 1ZR Overhaul Kit (primarily applicable to the 1ZR-FE/FAE series 1.6L engines) comprises a comprehensive set of components specifically designed for engines with an 80.5mm bore and 78.5mm stroke; its typical configuration includes a graphite cylinder head gasket, valve stem seals, and a complete set of seals.

Description

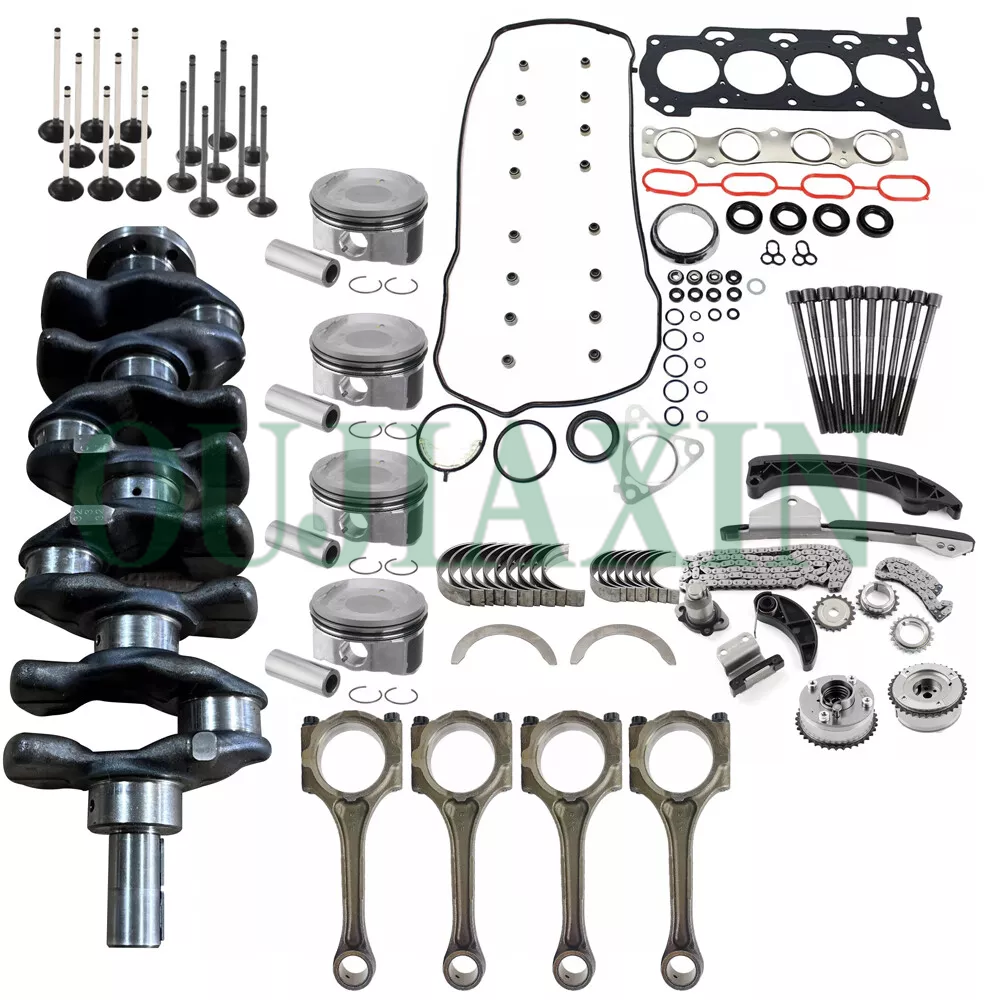

Core Components of the 1ZR-FE/FAE Engine Overhaul Kit:
Gasket Set (Complete): Includes a graphite cylinder head gasket, intake/exhaust manifold gaskets, valve cover gasket, valve stem seals, oil pan gasket, and crankshaft oil seals (front/rear).

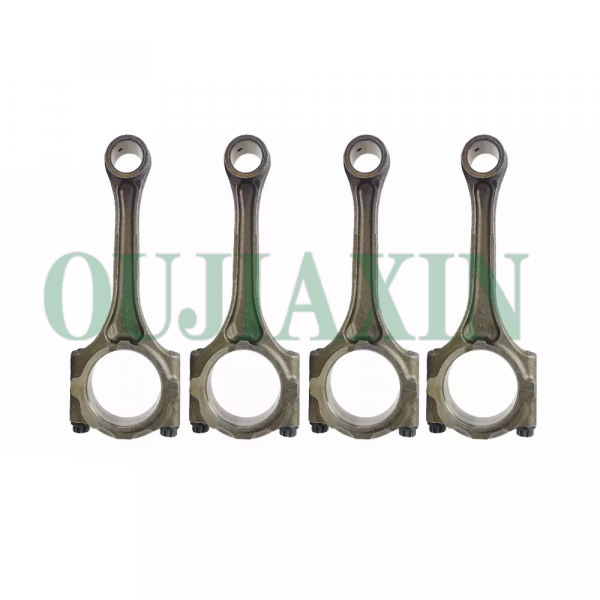

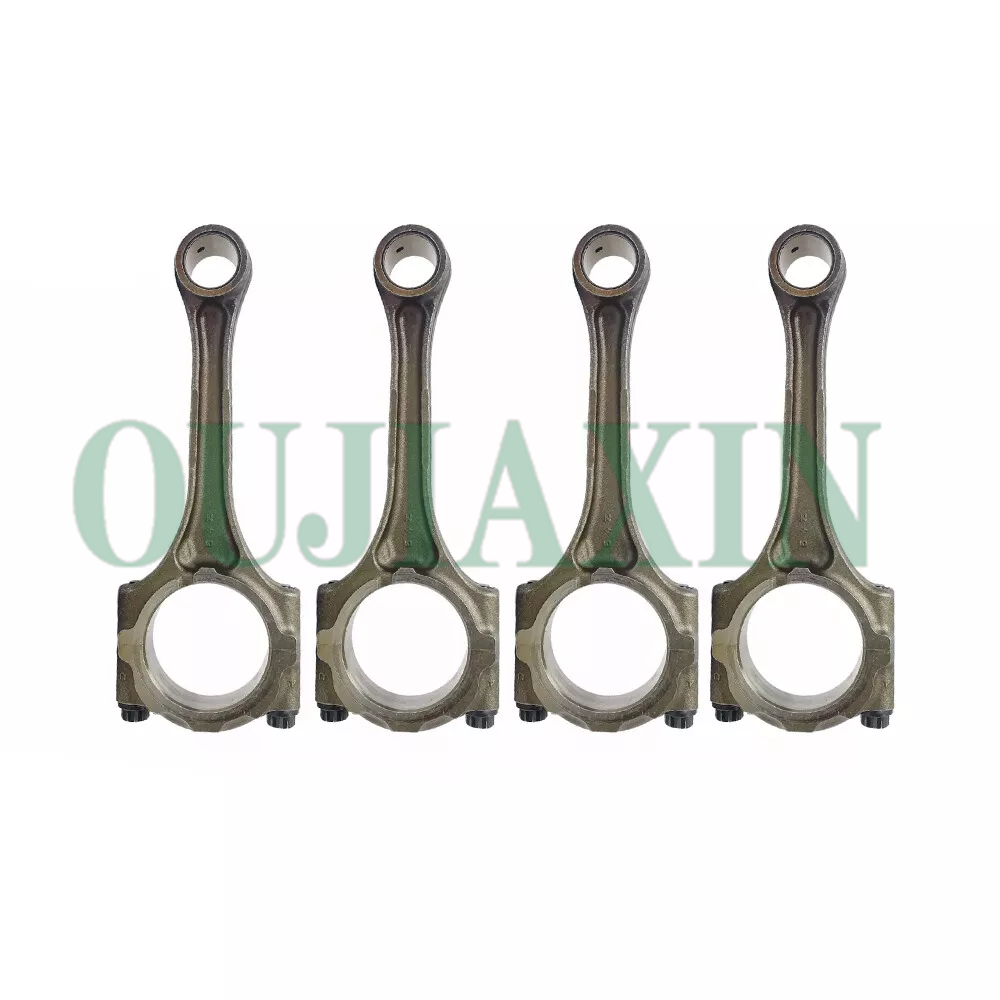

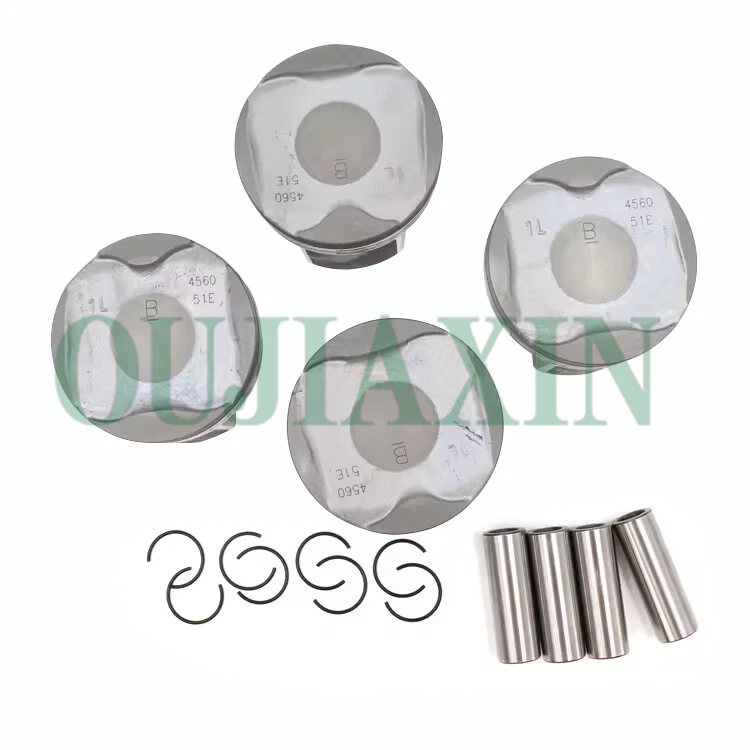

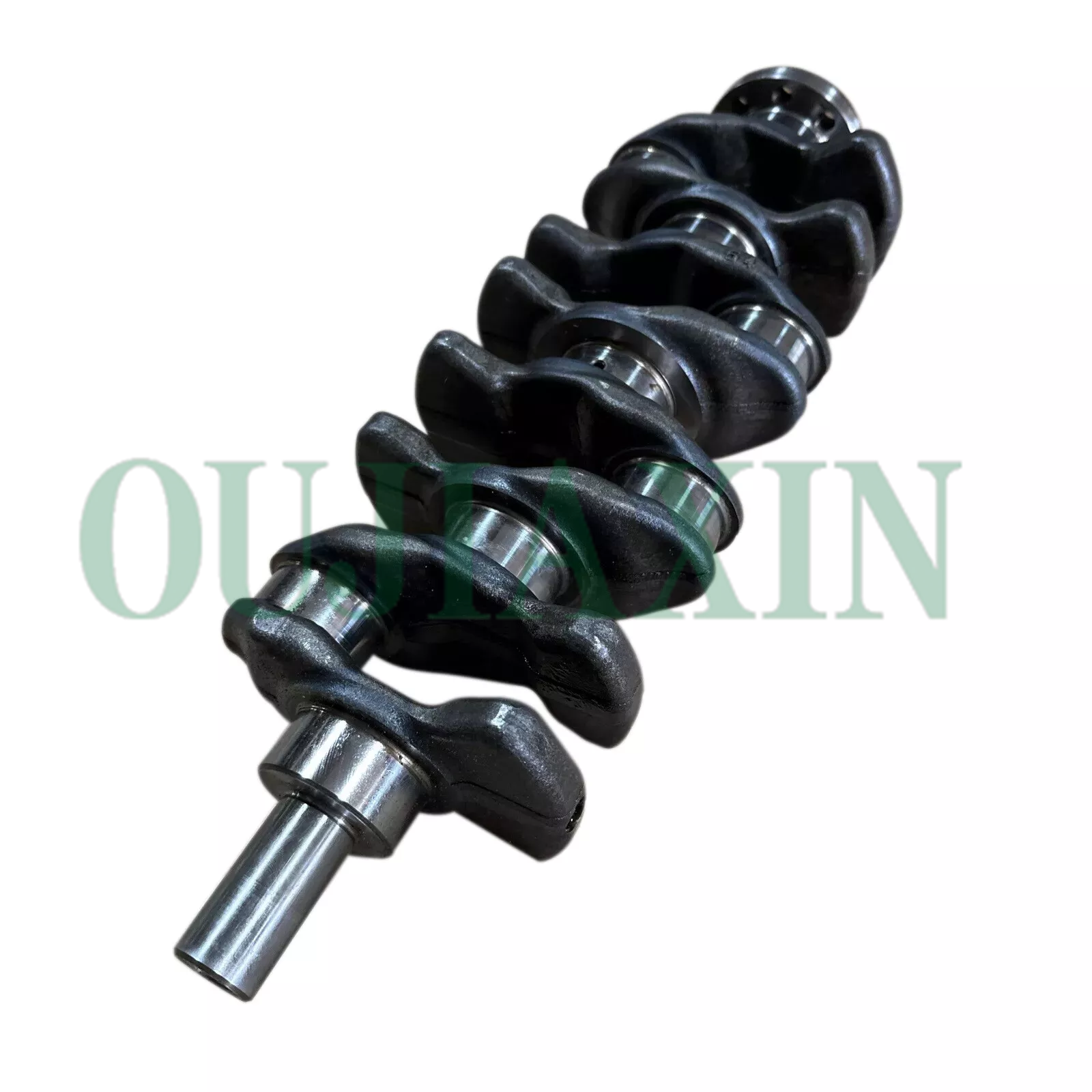

Internal Engine Components: Piston rings, pistons, connecting rod bearings, and crankshaft main bearings.
Timing Kit: Timing chain, tensioner, and guide rails; sometimes also includes Variable Valve Timing (VVT) gears.
Optional Accessories: Cylinder head bolts and engine sealant (RTV).

Engine Displacement: 1598 cc (1.6L).
Bore x Stroke: 80.5 mm x 78.5 mm.
Valve Mechanism: 16-Valve DOHC, Dual VVT-i.
Material: Aluminum Alloy.
Common Part Number / Applicable Models:
OEM Part Number: 04111-37092 (Typically listed as compatible with the 1ZR/2ZR series).
Compatible Models: Toyota Corolla, Auris, Yaris, Altis (approx. 2007 to present).
