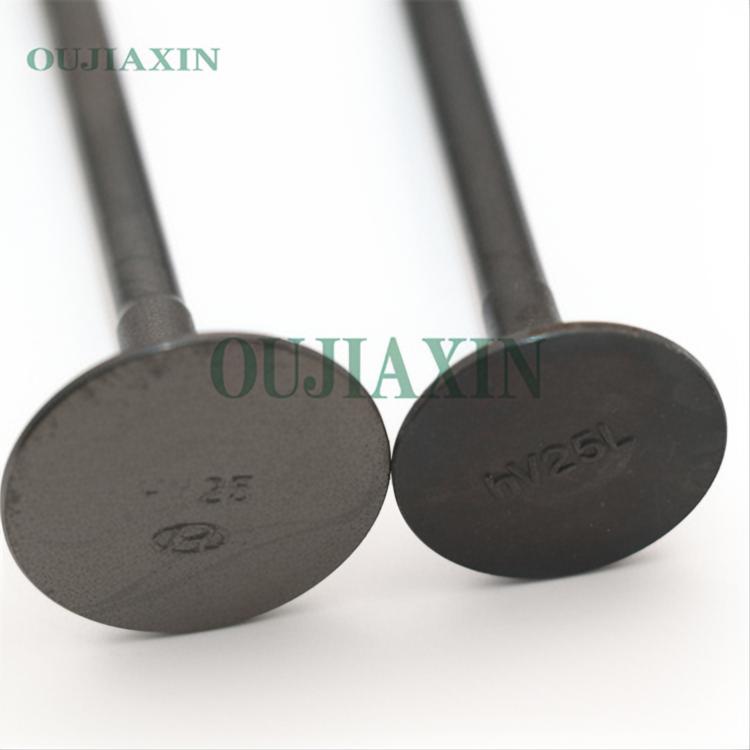

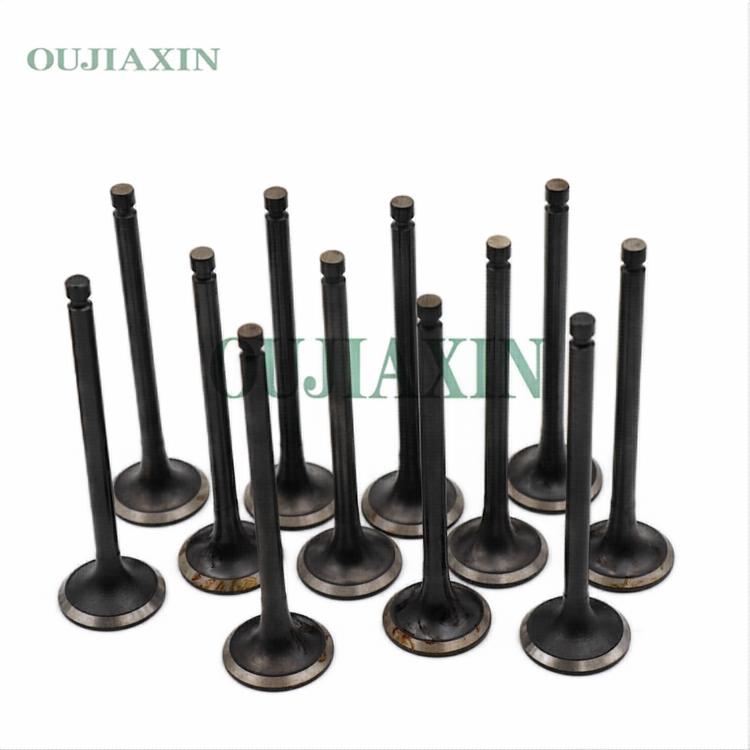

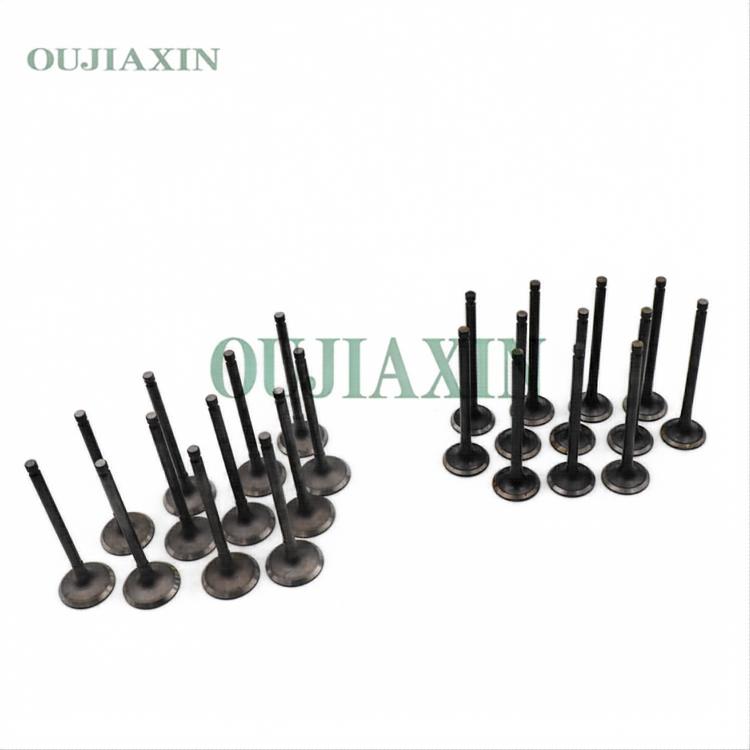

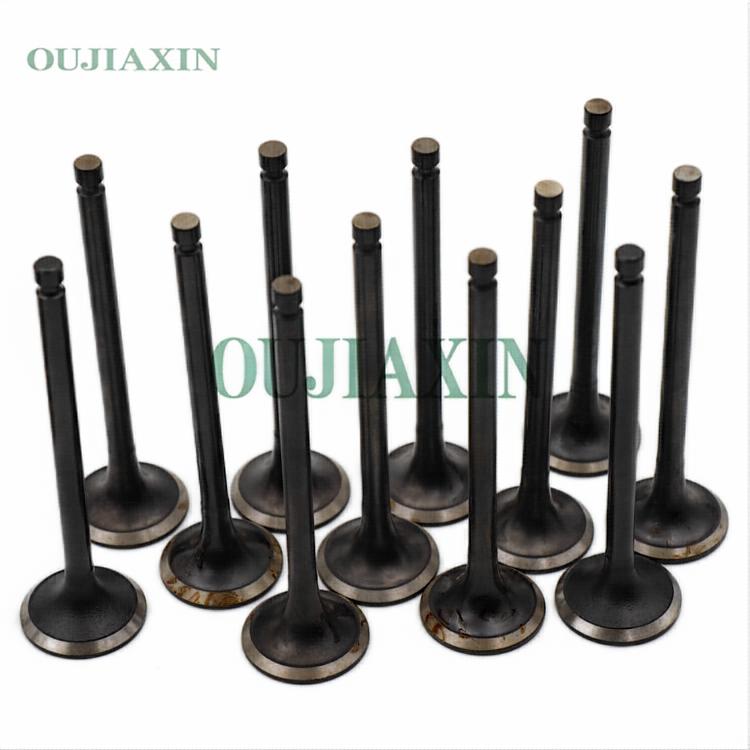

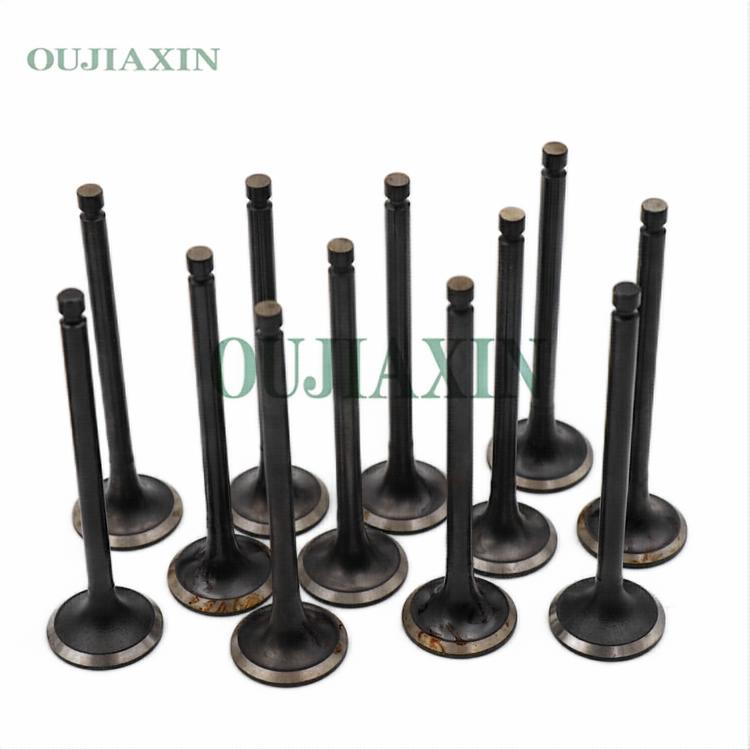

12 Intake and Exhaust Valves for the 2017 Hyundai Kia Coupe G6BA Engine

The Hyundai G6BA (2.7L DOHC V6) engine features a 24-valve layout, with both the intake and exhaust valves having a stem diameter of 6 mm. Specifically, the intake valves have a head diameter of approximately 32 mm and a length ranging from 96.1 to 96.35 mm; the exhaust valves have a head diameter of approximately 27.5 mm and a length ranging from 97.2 to 97.3 mm.

Category: Tag:

Description

Hyundai G6BA (2.7L) Valve Specifications
Intake Valves:
Head Diameter: ≈ 32mm
Stem Diameter: 6.00mm
Length: 96.1–96.35mm
Exhaust Valves: Head Diameter: ≈ 27.5mm
Stem Diameter: 6.00mm
Length: ≈ 97.2–97.3mm
Valve Seats and Guides:
Intake Valve Seat Bore Diameter: 33.300–33.825mm
Exhaust Valve Seat Bore Diameter: 28.600–28.621mm
Valve Guide Outer Diameter: 11.05–11.068mm (Standard Value)

OE Numbers: 22211-37201, 22212-37200
