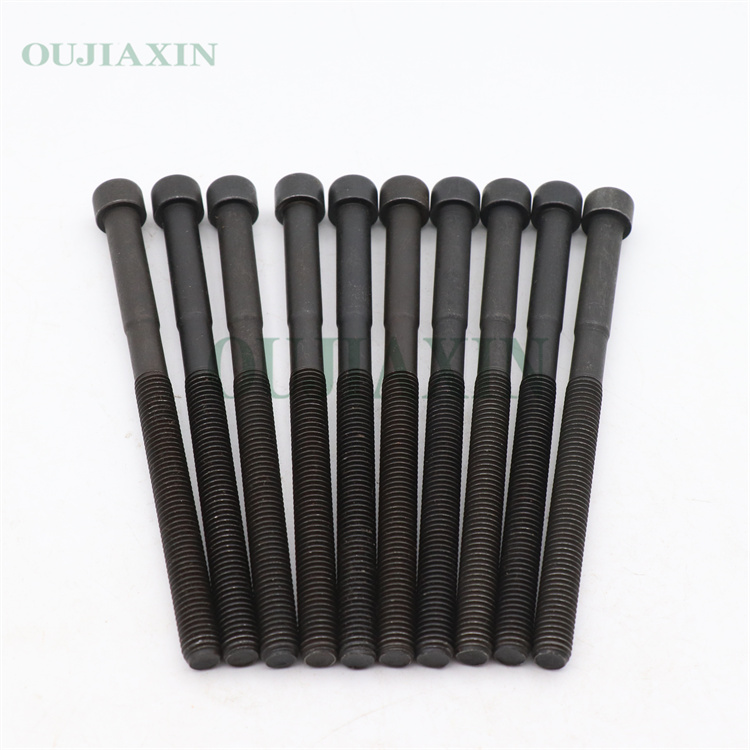

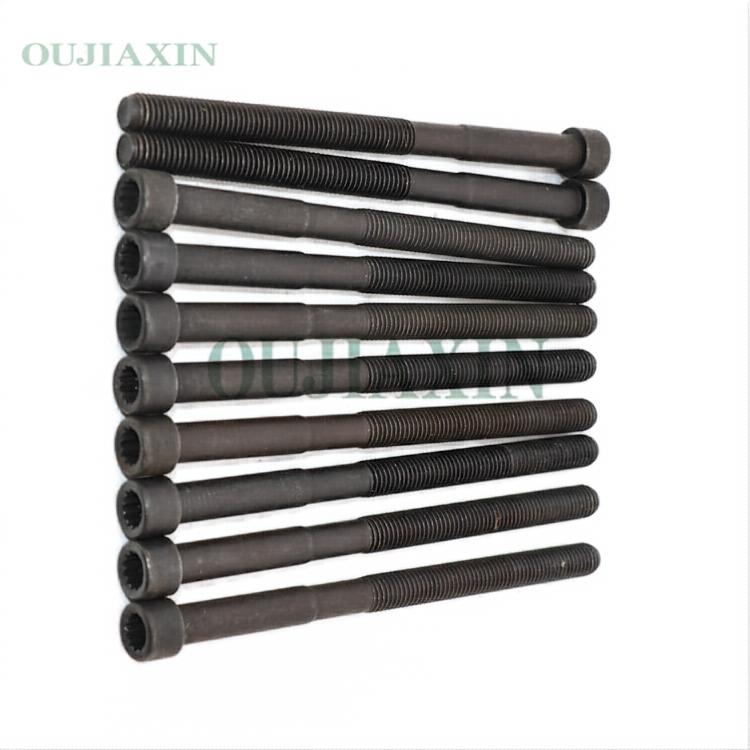

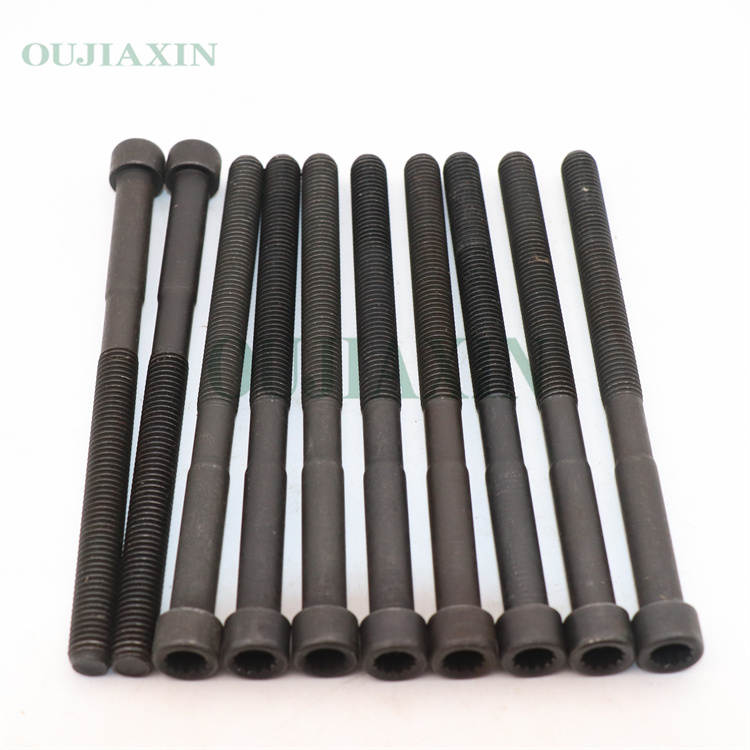

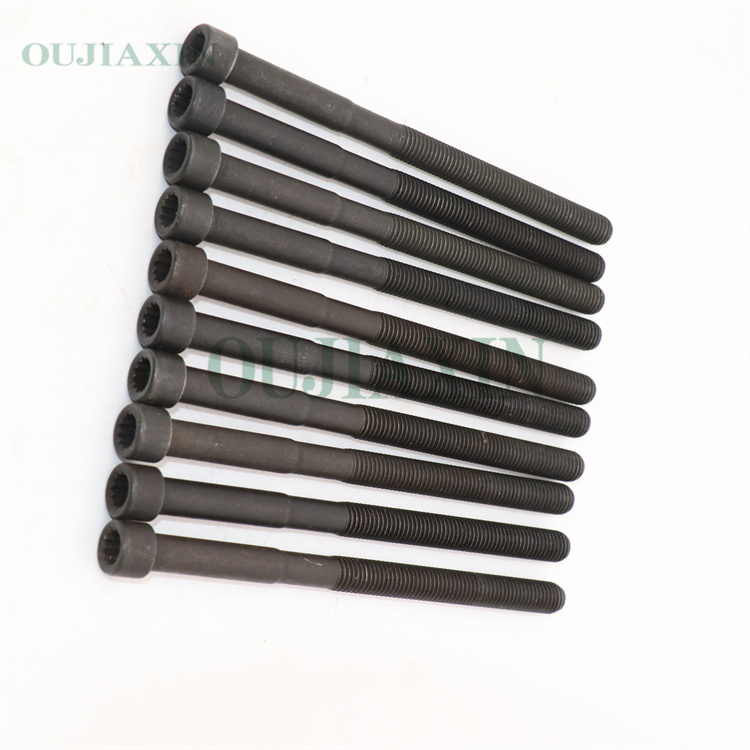

10PCS Head Bolt For 22321-2B700 Hyundai For Kia Engine Cylinder G4FG/G4FJ/G4FD
The cylinder head bolts (part numbers typically 22321-2B700 or 22321-26000) for Hyundai/Kia 1.6L G4FJ T-GDI engines are generally torque yield (TTY) fasteners. Installation requires a specific multi-step sequence, usually starting with 30 Nm (22 ft lb) and then rotating 90°, although some procedures may specify a method of 35 Nm (26 ft lb) + 75° + 75°.
Description
Key Parameters and Procedures
Bolt Type: Torque Yield (TTY), must be replaced after disassembly. Torque Sequence: Must follow the manufacturer-specified tightening sequence to prevent deformation.
Typical Torque Values:
Initial Step: 30-35 Nm (22-26 ft-lbs)
Subsequent Steps: Rotate 90°, or sometimes rotate twice at 75°.
Part Number: 22321-2B700 or 22321-26000.
