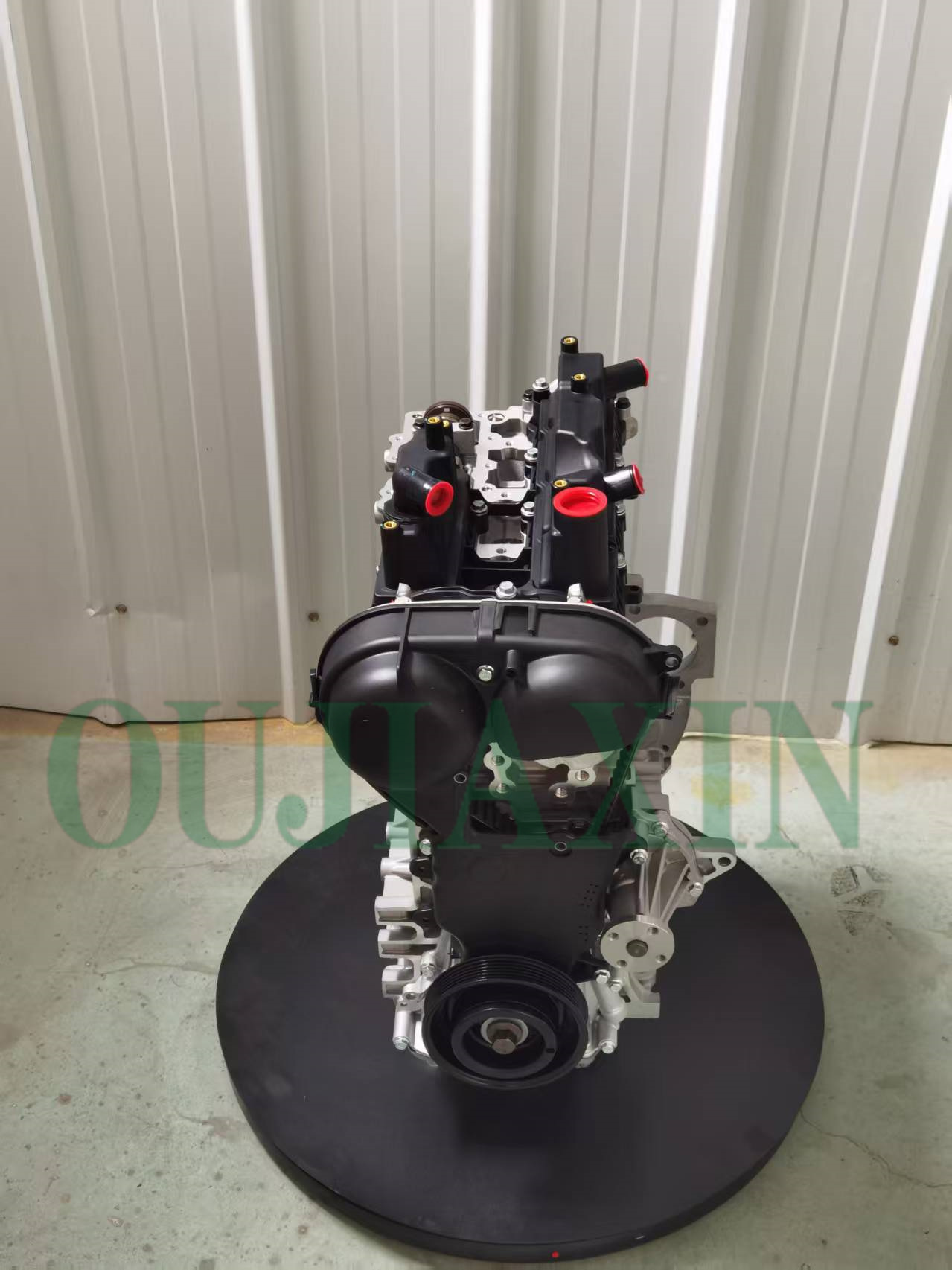

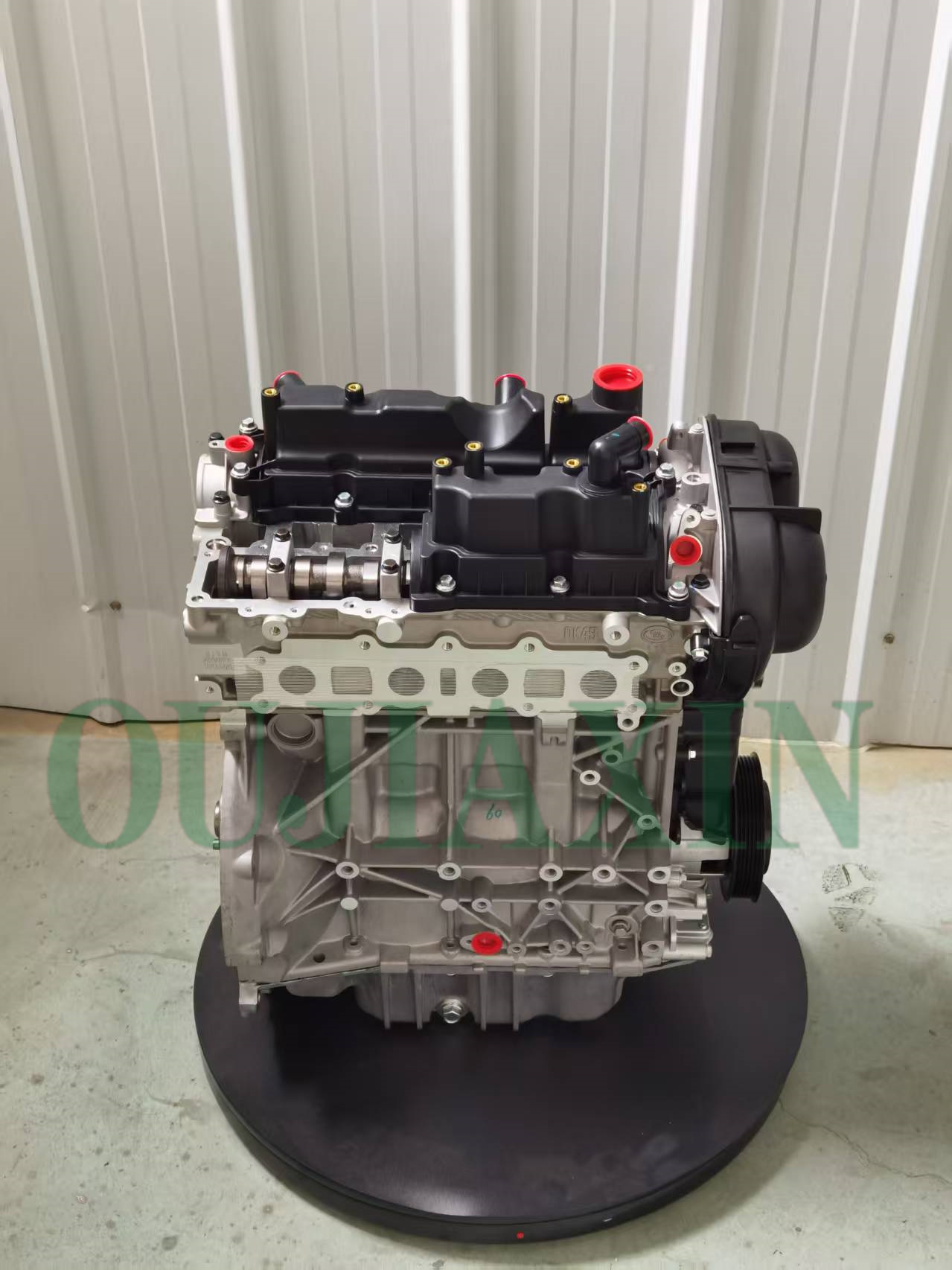

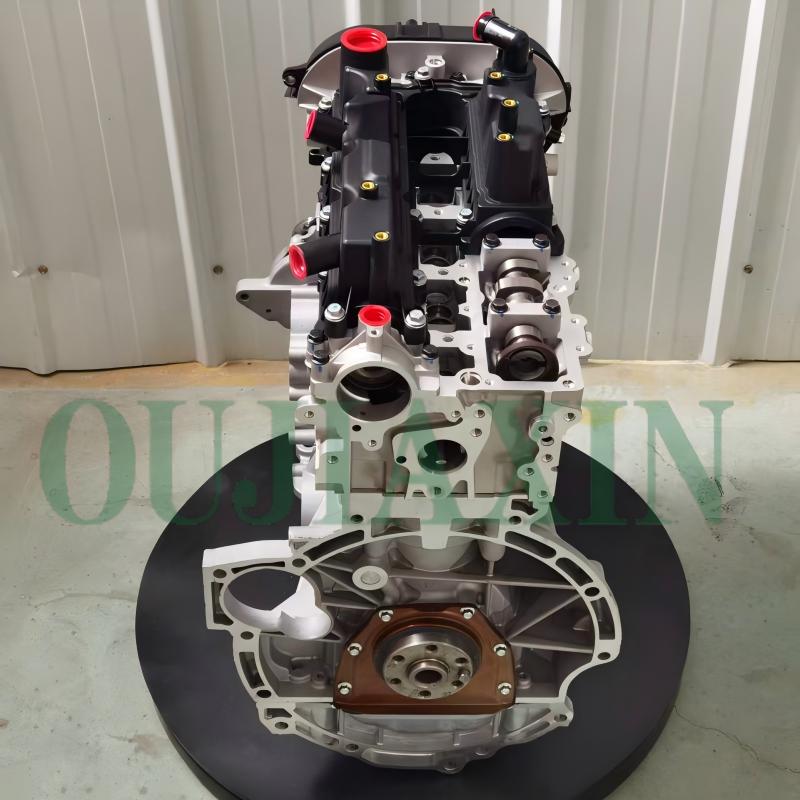

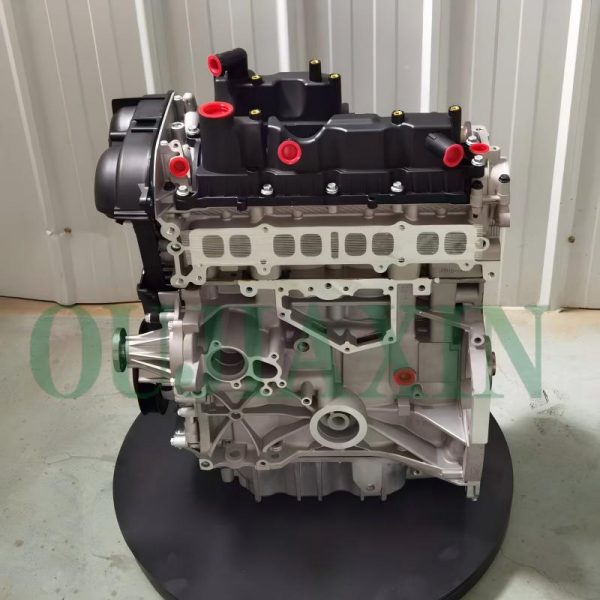

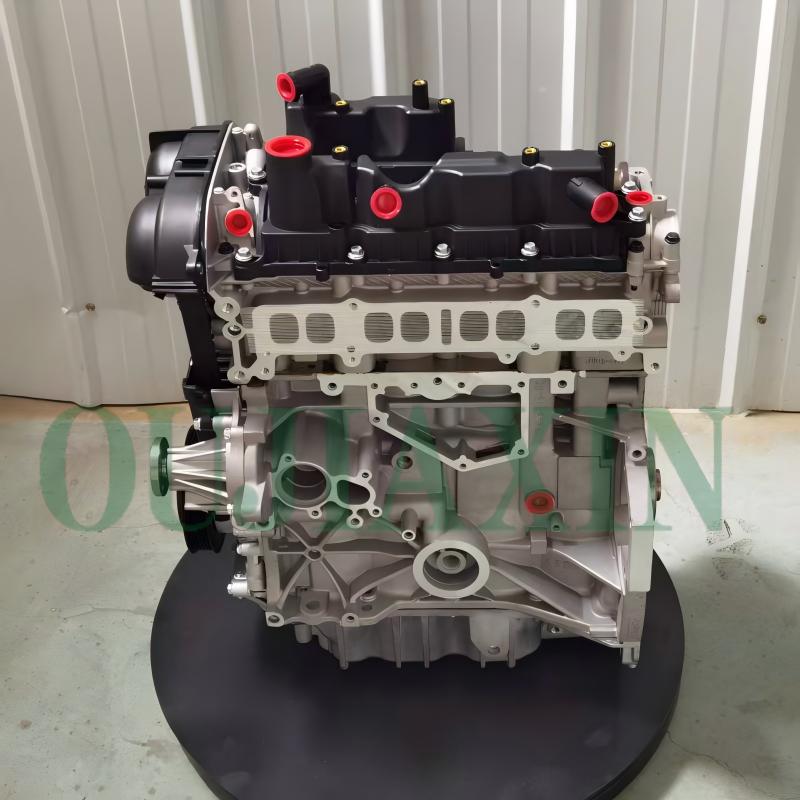

1.6L B4164T Long Block Engine Assembly for Volvo V40, S60, V60, C30, C70, and V70
The Volvo B4164T (also known as the Ford 1.6L EcoBoost) is a turbocharged, direct-injection inline-four engine with a displacement of 1.596 liters. Primarily used in Volvo and Ford models, it is designed to combine V6-like power performance with the fuel economy of a four-cylinder engine.
Description
Key Specifications
Engine Type: Turbocharged inline-4 gasoline engine
Displacement: 1,596 cc
Bore x Stroke: 79.0 mm x 81.4 mm
Compression Ratio: 10.0:1
Valvetrain: Double Overhead Camshaft (DOHC), 16 valves, Twin Independent Variable Camshaft Timing (Ti-VCT)
Power and Torque Output
Output figures vary depending on the engine tuning (T2, T3, or T4) and specific conditions:
Power: 88 kW (120 hp) to 132 kW (179 hp)
Torque: 240 Nm to 280.7 Nm
Fuel Supply: Gasoline Direct Injection (GDI)
Key Features
Cylinder block: Cast aluminum with cast-in iron cylinder liners.
Cylinder head: Cast aluminum; four valves per cylinder.
Turbocharger: Integrated low-inertia turbocharger with an electronic wastegate to reduce lag.
Commonly compatible models
Volvo models: S60, S80, V60, V70, V40 (T2, T3, and T4 versions); Ford models: Focus, Fiesta ST (select markets only), Mondeo, and Kuga.
